Product Description

JT800 Solar-Assisted Smart Electronic Lock with 3-Hour Fast Charging for Cargo Security

Smarter Power. Less Charging Downtime. More Efficient Cargo Operations.

Brand: Jointech
Model: JT800
Product Category: Solar-Assisted Smart Electronic Lock / GPS Cargo Lock
Applications: Customs ECTS, Cross-Border Logistics, Container Security, Cargo Transportation Monitoring

Product Overview

The Jointech JT800 Solar-Assisted Smart Electronic Lock is an industrial-grade electronic cargo security device designed to combine intelligent cargo monitoring with advanced battery management and solar-assisted charging technology.

For customs Electronic Cargo Tracking Systems (ECTS), national cargo monitoring operators, and large-scale logistics projects, maintaining sufficient device power is an important operational requirement.

Electronic locks need to support continuous transportation operations while minimizing unnecessary charging interruptions and equipment downtime.

The JT800 addresses these operational challenges through an integrated power management design featuring a 15,000mAh rechargeable lithium battery, solar-assisted charging, and approximately three-hour fast charging under specified conditions.

In addition to its power management capabilities, the JT800 combines GNSS tracking, 4G LTE communication, electronic locking, intelligent security alerts, and built-in visual monitoring.

This combination makes it suitable for B2B cargo security projects requiring both reliable electronic supervision and efficient equipment management.

Key Product Features

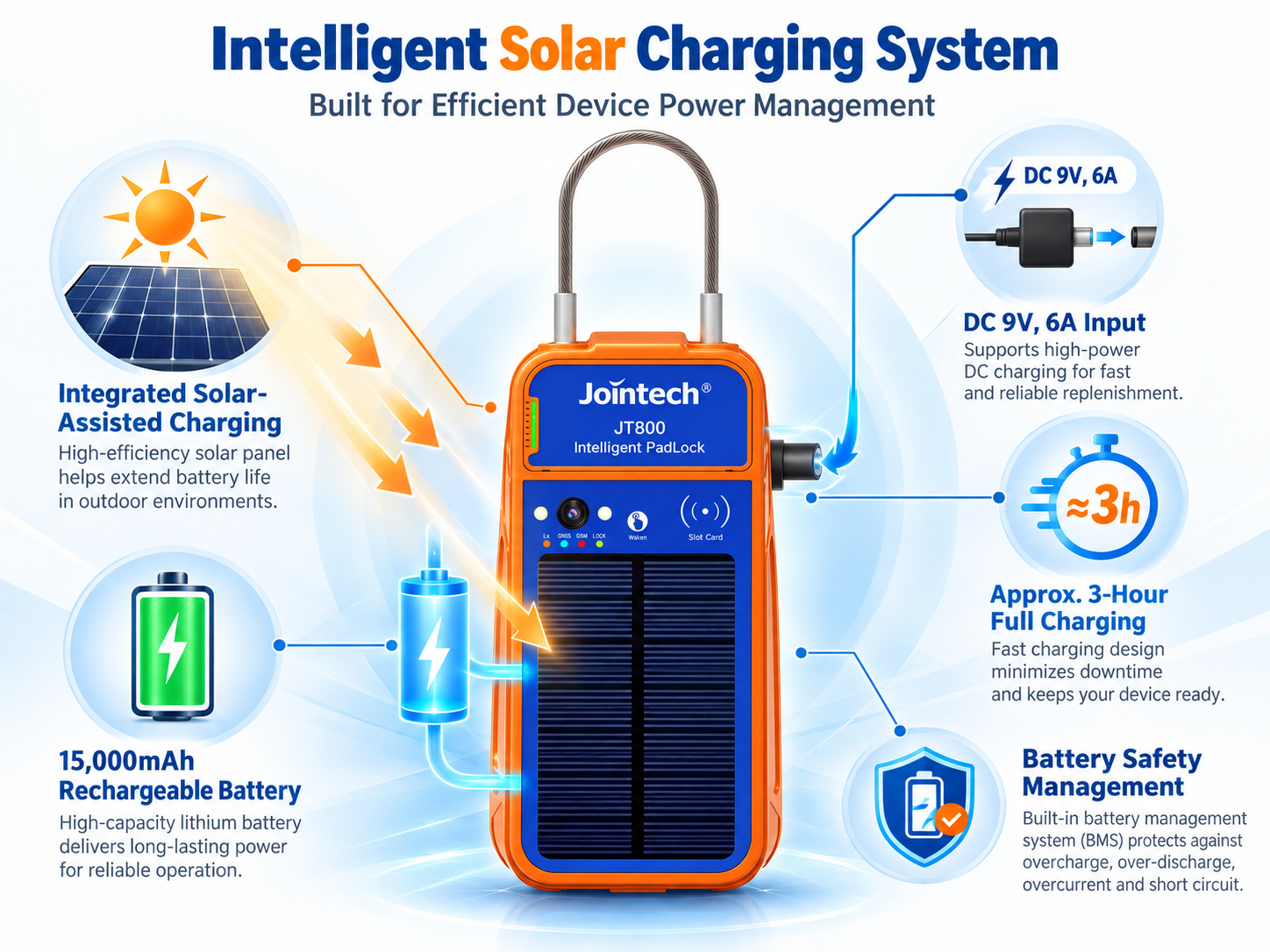

1. Solar-Assisted Charging for Cargo Transportation

The JT800 integrates a solar panel to provide supplementary battery charging during operation.

Key capabilities include:

• Built-in solar charging panel

• Maximum specified solar charging current of approximately 220mA

• Solar-assisted battery power management

• Supplementary charging under suitable sunlight conditions

• Integrated solar panel design without a separate external charging unit

Solar-assisted charging can help reduce reliance on external charging in appropriate operating environments.

Actual solar charging performance depends on sunlight intensity, installation orientation, weather, shading, and device power consumption.

2. Approximately 3-Hour Fast Charging

Charging time is an important factor for operators managing large numbers of electronic cargo locks.

The JT800 features a fast-charging design with:

• DC 9V charging input

• 6A charging current

• Approximately three-hour full charging time under specified conditions

• Rechargeable 15,000mAh lithium battery

Faster charging can help operators plan equipment rotation and charging schedules more efficiently.

For large-scale customs ECTS deployments, charging efficiency may contribute to improved asset utilization when combined with appropriate operational procedures.

3. 15,000mAh Rechargeable Battery

The JT800 incorporates a high-capacity lithium battery designed for transportation monitoring applications.

Its battery system supports the device's positioning, communication, electronic security, and visual monitoring functions.

Actual battery operating duration depends on several factors, including:

• GNSS positioning frequency

• Cellular communication intervals

• Photo and video recording frequency

• Remote monitoring activity

• Ambient temperature

• Solar charging conditions

For project deployments, battery endurance should be evaluated using the customer's actual operating profile.

4. Intelligent Battery Safety Management

Beyond battery capacity and charging speed, industrial electronic locks require reliable power safety management.

The JT800 incorporates battery safety management features addressing:

• Battery crushing and compression risks

• High-temperature conditions

• Physical impact

• Battery health and status monitoring

These functions are intended to improve battery safety during demanding transportation operations.

5. GPS Tracking and 4G LTE Communication

The JT800 combines power management with intelligent cargo tracking capabilities.

Key functions include:

• GPS + GLONASS or GPS + BeiDou positioning

• 4G LTE wireless communication

• Electronic lock status monitoring

• Remote location tracking through compatible platforms

• Security event reporting

These capabilities allow operators to integrate cargo tracking and electronic security functions into their monitoring workflows.

6. Built-In Camera and Electronic Security Monitoring

The JT800 also integrates a camera and electronic security monitoring functions.

Supported capabilities include:

• Photo and video recording

• Remote visual monitoring through compatible platforms

• Tampering and unauthorized unlocking alerts

• Impact and vibration detection

• Multiple electronic unlocking methods

Since visual monitoring can increase power consumption, video usage and battery performance should be evaluated together during system testing.

7. Industrial-Grade Environmental Protection

The JT800 is designed for demanding cargo transportation environments.

Key characteristics include:

• IP67 ingress protection

• Operating temperature from −20°C to +60°C

• Engineering plastic and aluminum alloy housing

• Impact and vibration detection

• Rechargeable battery with integrated power management

B2B Application Scenarios

Customs ECTS and National Cargo Monitoring Operations

National ECTS operators may manage large numbers of electronic cargo locks across border crossings, monitoring stations, and logistics corridors.

In these operations, device charging and equipment rotation can create additional workload.

The JT800 combines solar-assisted charging and fast charging to support power management within large-scale electronic cargo supervision systems.

Cross-Border Truck Transportation

Cross-border transportation may involve long-distance routes and varying access to charging facilities.

Solar-assisted charging can provide supplementary energy when environmental conditions permit.

The JT800 also supports positioning, communication, and electronic security functions for cargo transportation monitoring.

Container and Trailer Security

For container and trailer transportation projects, the JT800 offers an integrated electronic locking and monitoring device with solar-assisted power management.

It can be evaluated for applications where operators require both cargo security and practical battery maintenance procedures.

High-Value Cargo Transportation

The JT800 combines electronic access control, cargo tracking, security alerts, and supplementary solar charging.

It can be evaluated for high-value logistics projects where device availability and transportation security are important operational considerations.

System Integrators and Government Project Contractors

For system integrators, device power requirements are an essential part of technical evaluation.

The JT800 provides a combination of battery capacity, fast charging, solar assistance, and monitoring functions that can be assessed against project-specific operating conditions.

Technical Specifications

Why Power Management Matters in Large-Scale ECTS Projects

For national cargo monitoring operators, electronic lock procurement should consider more than the initial hardware purchase price.

A large-scale deployment may require a structured process for device charging, allocation, maintenance, and rotation between transportation assignments.

Power-related evaluation should consider:

• Charging time per device

• Battery endurance under actual operating conditions

• Charging infrastructure requirements

• Equipment rotation and utilization

• Maintenance labor requirements

• Battery performance over time

• Total cost of ownership (TCO)

The JT800's fast-charging and solar-assisted design offers potential operational advantages that should be validated through field testing.

Frequently Asked Questions

Q1: What is a solar-assisted smart electronic lock?

A solar-assisted smart electronic lock combines electronic access control and wireless monitoring with an integrated solar panel that provides supplementary battery charging under suitable sunlight conditions.

Q2: Can the JT800 operate entirely on solar energy?

The JT800 uses a rechargeable lithium battery with solar-assisted charging. Solar charging supplements the battery but does not guarantee uninterrupted operation without external charging.

Q3: How long does the JT800 take to charge?

The JT800 specifications state approximately three hours for a full charge under specified charging conditions using a DC 9V, 6A input.

Q4: How long does the JT800 battery last?

Battery endurance depends on the device's operating configuration, GNSS reporting intervals, cellular network conditions, video usage, temperature, and solar exposure. Project-specific testing is recommended.

Q5: Is the JT800 suitable for large-scale customs ECTS projects?

The JT800 is designed for cargo security and monitoring applications and can be evaluated for ECTS deployments based on national technical requirements, integration compatibility, and field performance.

Q6: Does solar charging eliminate maintenance requirements?

No. Solar-assisted charging may supplement battery power, but routine inspections, battery monitoring, charging, and maintenance may still be necessary.

Q7: Can system integrators evaluate the JT800 for bulk deployment?

Yes. System integrators and government project contractors can contact Jointech to discuss sample testing, integration requirements, project specifications, and procurement arrangements.

B2B Project Inquiry

Looking for a solar-assisted GPS electronic lock for your customs or cargo security project?

Contact Jointech to discuss product specifications, power management requirements, sample evaluation, technical integration, and project-based quotations.

Request Technical Specifications | Discuss Your Project | Request a Quotation
