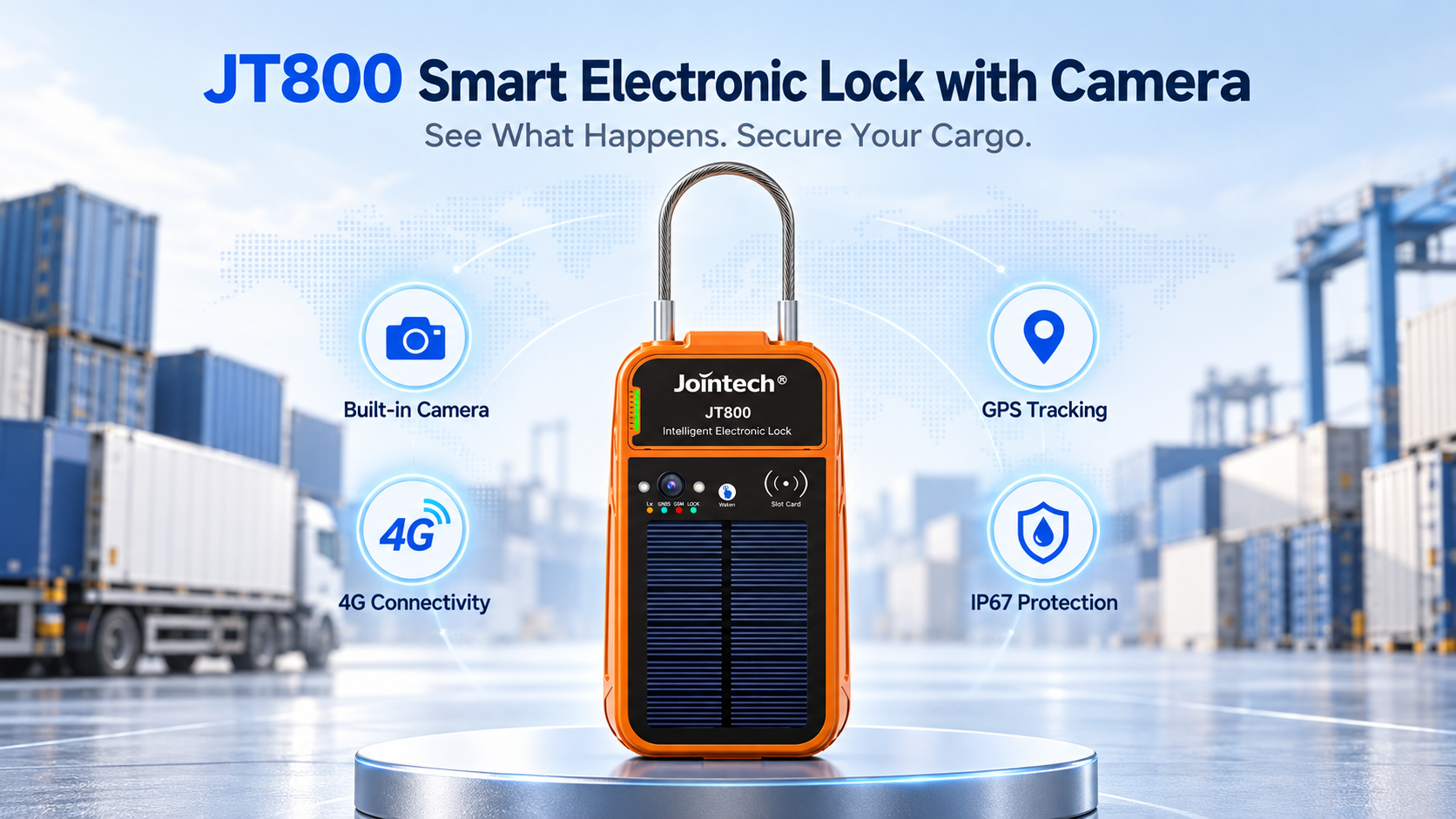

JT800 Smart Electronic Lock with Camera for Remote Cargo Monitoring

The JT800 integrates a camera designed to support visual monitoring in cargo transportation environments.

Key capabilities include:

• Built-in camera for photo and video recording
• Remote visual monitoring through compatible platforms
• Configurable low-light night vision
• Local storage using a TF card with support for up to 512GB
• Visual information to support investigation of security-related events

The camera adds visual context to cargo security monitoring beyond conventional positioning and electronic lock-status information.

Cargo transportation can involve unexpected security events, including unauthorized unlocking attempts, tampering, and physical impact.

The JT800 combines electronic security alerts with camera-based monitoring capabilities.

This enables authorized operators to obtain additional visual information when evaluating an incident, potentially helping them determine whether further investigation or on-site inspection is required.

The availability of automatic event-triggered photo or video capture depends on the device firmware and platform configuration.

For logistics monitoring centers, remote access to visual information can be valuable when investigating incidents across large transportation networks.

The JT800 supports remote visual monitoring through compatible communication and monitoring systems.

Potential operational benefits include:

• Additional visual information for incident assessment
• Remote review of the camera's surrounding field of view
• Support for security event investigation
• Improved situational awareness during cargo transportation

Actual image and video availability depends on cellular connectivity, device configuration, power conditions, and platform capabilities.

The JT800 integrates GNSS positioning and 4G LTE connectivity to support cargo tracking and security monitoring.

Technical capabilities include:

• GPS + GLONASS or GPS + BeiDou
• 4G LTE mobile communication
• Cargo position and movement monitoring
• Electronic lock-status communication
• Support for integration with compatible monitoring platforms

These capabilities allow logistics operators and system integrators to combine location-based information with visual monitoring functions.

Power management is an important consideration for electronic locks used in large-scale cargo transportation projects.

The JT800 provides:

• 15,000mAh rechargeable lithium battery
• Integrated solar-assisted charging
• DC 9V, 6A charging input
• Approximately three-hour full charging under specified conditions
• Battery safety and health management functions

These features help support equipment management and deployment planning.

The JT800 supports RFID, NFC, Bluetooth, and dynamic password unlocking options.

It also features:

• IP67 ingress protection
• Operating temperature from −20°C to +60°C
• Engineering plastic and aluminum alloy housing
• Impact and vibration detection
• Voice interaction and device status prompts
