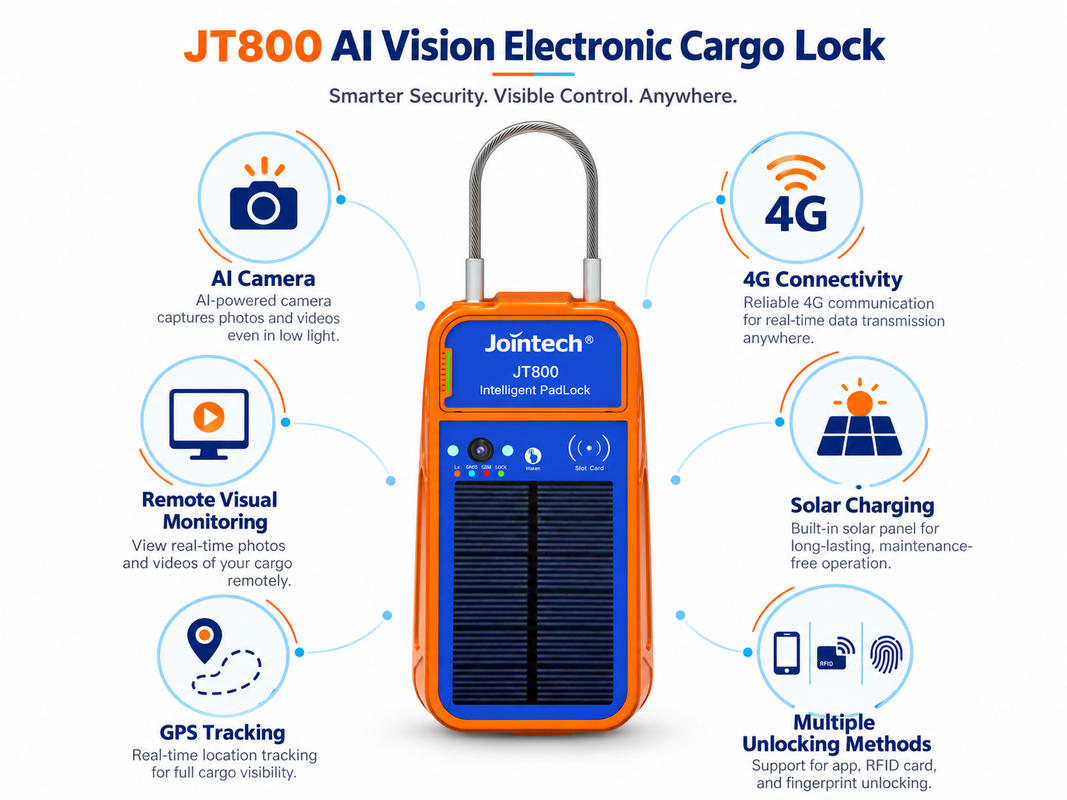

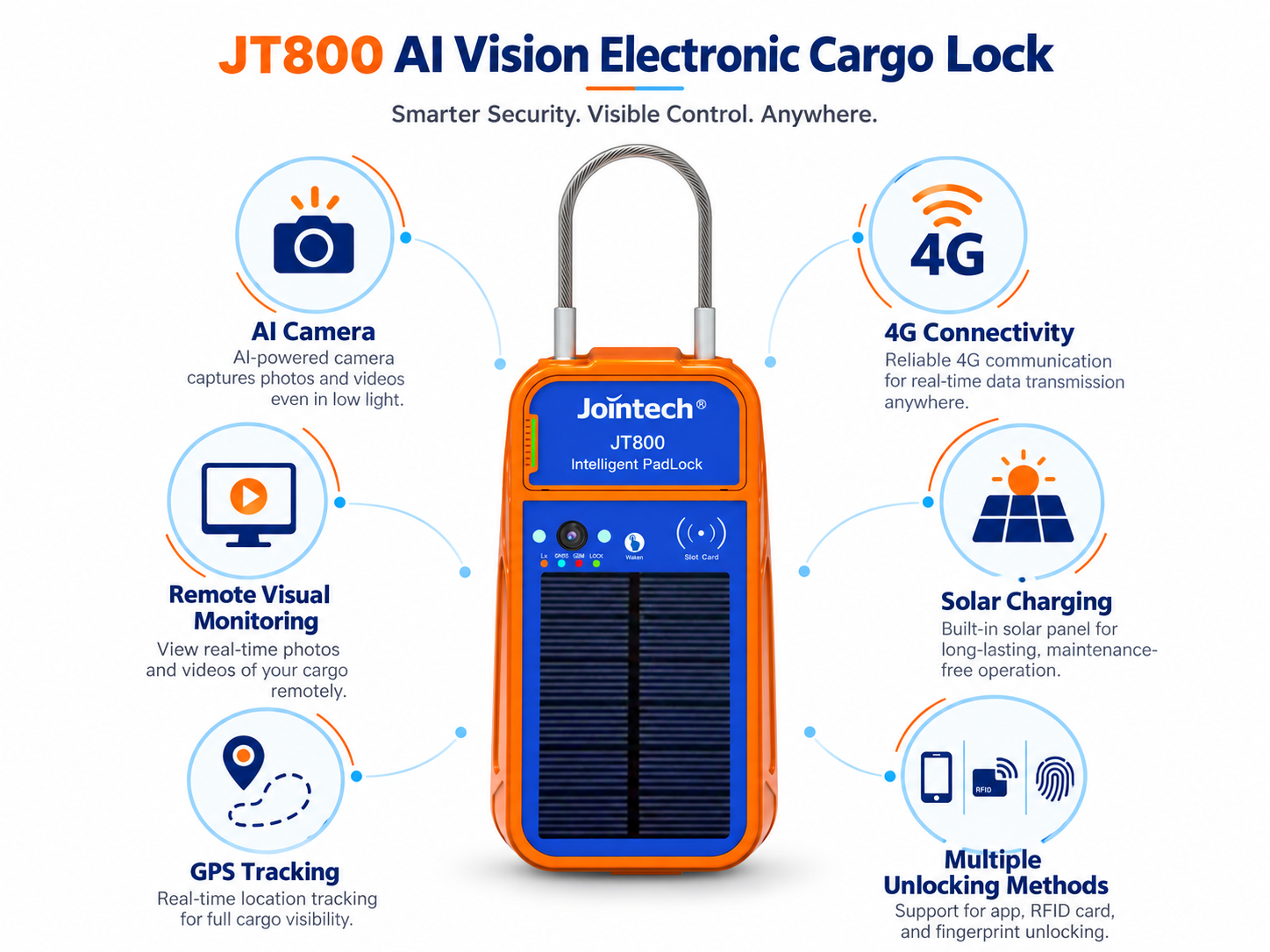

JT800 AI Vision Electronic Cargo Lock with Remote Video Monitoring

AI-Enabled Visual Security for Customs, Container Transportation and High-Value Cargo

Product Overview

The Jointech JT800 AI Vision Electronic Cargo Lock is an industrial-grade smart electronic lock designed to combine cargo tracking, electronic access control, and remote visual monitoring in one intelligent security device.

Traditional GPS electronic locks primarily provide location data and lock-status alerts. However, when a security alarm occurs during transportation, operators may need additional information to understand what happened.

The JT800 addresses this challenge by incorporating a built-in camera that enables authorized operators to obtain visual information from the cargo security environment.

Combining GNSS positioning, 4G LTE communication, photo and video recording, intelligent alerts, and solar-assisted charging, the JT800 provides enhanced visibility for customs electronic cargo tracking systems (ECTS), container security projects, and cross-border logistics operations.

Key Features and Advantages

1. AI Vision Camera for Cargo Security

The JT800 features a built-in visual monitoring system designed to support security monitoring during cargo transportation.

Key capabilities include:

• Built-in camera for photo and video recording

• Remote visual monitoring through compatible platforms

• Configurable low-light night vision

• Video and image storage using a TF card

• Visual information supporting security event investigation

The camera provides an additional layer of situational awareness beyond conventional GPS positioning and electronic lock-status monitoring.

2. Remote Visual Verification of Security Events

When a security-related event occurs, logistics operators and monitoring centers need to determine whether further investigation is necessary.

The JT800 combines visual monitoring with multiple security alert functions, including:

• Unauthorized unlocking alerts

• Tampering detection

• Impact and vibration monitoring

• Electronic lock-status monitoring

Visual information can assist authorized personnel in evaluating cargo security incidents and deciding whether to initiate additional verification or on-site inspection.

Actual event-triggered image capture and automated workflows depend on the configured system functions.

3. GNSS Tracking and 4G LTE Communication

The JT800 integrates satellite positioning and mobile communication technologies for cargo transportation supervision.

• GPS + GLONASS or GPS + BeiDou positioning

• 4G LTE cellular connectivity

• Location and movement monitoring

• Remote device-status communication

• Support for compatible cargo monitoring platforms

Combining location data with electronic security events provides additional context for operational decision-making.

4. Solar-Assisted Charging and Fast Power Recovery

Reliable power management is particularly important for electronic locks deployed in large-scale transportation operations.

The JT800 incorporates:

• 15,000mAh rechargeable lithium battery

• Built-in solar-assisted charging

• Approximately three-hour full charging under specified conditions

• Battery safety and health management functions

This design supports efficient device rotation and power management during transportation operations.

Actual operating duration depends on communication frequency, video usage, temperature, and charging conditions.

5. Multiple Electronic Unlocking Options

The JT800 supports different electronic access control methods for project-specific operational requirements.

Available options include:

• RFID

• NFC

• Bluetooth

• Dynamic password

These options enable system integrators and project operators to evaluate appropriate unlocking procedures and authorization mechanisms for their deployment environments.

6. Industrial-Grade Protection

The JT800 is engineered for demanding transportation environments.

• IP67 ingress protection

• Operating temperature: −20°C to +60°C

• Engineering plastic and aluminum alloy construction

• Impact and vibration detection

• Battery protection and safety management

Applications

Customs Electronic Cargo Tracking Systems (ECTS)

The JT800 can be evaluated for customs transit monitoring projects requiring electronic sealing, cargo location tracking, security alerts, and remote visual verification.

Its camera-based monitoring capability can provide additional information to customs monitoring centers when investigating suspicious transportation events.

Container and Trailer Security

For containerized cargo and trailer transportation, the JT800 combines electronic locking, GPS positioning, and visual monitoring capabilities.

This enables operators to monitor cargo movement and review security-related information during transportation.

High-Value Cargo Transportation

The JT800 is suitable for evaluation in high-value cargo security projects where cargo movement visibility, electronic access control, and visual event records are important.

Potential applications include electronics, industrial components, and other sensitive cargo transportation.

Government Operators and System Integrators

Government transit-monitoring operators and system integrators can assess the JT800 as an intelligent hardware component within broader customs and logistics supervision solutions.

Integration requirements, communication protocols, video functions, and project-specific compliance should be confirmed during technical evaluation.

Technical Specifications

Frequently Asked Questions

Q1: What is an AI Vision Electronic Cargo Lock?

An AI Vision Electronic Cargo Lock combines electronic cargo locking, satellite positioning, wireless communication, and camera-based monitoring to support cargo security management and visual event verification.

Q2: What is the difference between an AI Vision Cargo Lock and a traditional GPS Cargo Lock?

Traditional GPS cargo locks mainly provide location tracking and electronic security status. An AI vision cargo lock adds camera-based monitoring, providing visual information to assist operators in understanding security-related events.

Q3: Can the JT800 provide remote video monitoring?

Yes. The JT800 supports remote visual monitoring through its integrated camera and compatible monitoring systems, subject to network conditions and platform configuration.

Q4: Can the JT800 be integrated into customs ECTS projects?

The JT800 is designed for cargo transportation monitoring applications and can be evaluated for integration into customs ECTS solutions. Compatibility and compliance depend on the project requirements.

Q5: Does the JT800 support solar-assisted charging?

Yes. The JT800 integrates a solar-assisted charging system alongside its rechargeable lithium battery.

Q6: Who are the typical B2B customers for the JT800?

Typical customers include customs technology system integrators, government transit-monitoring operators, logistics technology providers, and enterprise cargo security solution companies.

B2B Project Inquiry

Looking for an AI Vision Electronic Cargo Lock for your next project?

Contact Jointech to discuss technical specifications, sample evaluation, system integration requirements, bulk procurement, and project-based quotations.

Request a Technical Consultation | Request a Project Quotation

Manufacturer: Shenzhen Joint Technology Co., Ltd. (Jointech)
