Jointech GPS Container Lock JT705C High-Value Deliveries Secure Tracking Padlock Smart E Padlock Camera Locker

Minimum Order Quantity : 1 Price : USD 1000-USD1200
Packaging Details : Cartons Delivery Time : 3-7 working days
Payment Terms : T/T Supply Ability : 5000+ PER MONTH
Place of Origin: China Brand Name: Jointech
Certification: ISO 9001:2015 Model Number: JT705C

Detail Information

Product Name: Jointech GPS Container Lock JT705C High-Value Deliveries Secure Tracking Padlock Smart E Padlock Camera Locker Housing Material: PC Engineering Plastic
Waterproof Grade: IP65 Feature: Remote Door Control, Live Gps Tracking
Usage: Containers, Van Trucks Battery: Rechargeable Lithium Battery 3.7V /15000mAh
Voltage: DC 5V/2500mA Function: High Security Remote NFC Smart Unlock Padlock

Product Description

Jointech GPS Container Lock JT705C High-Value Deliveries Secure Tracking Padlock Smart E Padlock Camera Locker



The JT705C Smart Video Lock, created by Shenzhen Joint Technology Co., Ltd., is an advanced security solution aimed at improving the safety and monitoring of valuable assets during transportation. This innovative locking system features state-of-the-art components, including an LCD display, fingerprint recognition, high-frequency RFID technology, and a removable battery for convenience and enhanced security. With its smart functionalities—such as night vision enhancement, wide-angle recording, and real-time data interaction—the JT705C not only offers tamper-resistant protection but also captures video evidence whenever an alarm is triggered, providing a comprehensive monitoring and recording system for logistics and transportation security. Its design meets the high standards required for modern transportation security, ensuring reliable protection for sensitive goods and maintaining the integrity of the supply chain.





Key Features:

  • Extended Battery Life: Supports removable and rechargeable batteries, improving turnover rates and reducing charging wait times.
  • OLED Display: Offers a clear visual representation of the device's status.
  • Multifunctional Recording: Capable of video recording, voice recording, and photo capture with a 150° wide-angle camera that can record both individuals and the container door simultaneously.
  • Communication Modes: Supports 2G/4G connectivity with a keyless design, featuring unlocking options via RFID, Bluetooth, APP, or Web.
  • Real-Time GPS Tracking: Ensures accurate location monitoring.
  • Adjustable Security Bar: Provides customizable security options.
  • Tamper Alerts: Includes disassembly alarms and a tracking platform.
  • Geofencing Capabilities: Allows for defined area monitoring.
  •



Applications:

  • Logistics and Transportation Security: Ideal for cross-border shipping containers and railway transportation.
  • Warehouse Oversight: Effective for entrance and gate management.
  • Fleet Management: Assists in planning and managing vehicle routes between warehouses for tasks like parts distribution and supermarket deliveries.
  • High-Value Cargo Protection: Ensures security for valuable shipments.
  • Government Use: Suitable for customs and revenue departments.


Solutions:



For Cargo Transportation Companies:

By utilizing real-time vehicle positioning and tracking, companies can optimize transport efficiency and improve vehicle utilization rates. They can monitor vehicle mileage and driver behavior remotely, using mobile or web platforms to unlock the system, thereby enhancing control over driver conduct. The robust electronic lock is designed to be highly secure against tampering.



For Large Cargo Companies (e.g., Supermarkets):

The system restricts unlocking to designated locations, ensuring the safety of in-transit goods and preventing theft. It supports Bluetooth unlocking via a mobile app to facilitate access in areas with poor network signals, such as warehouses or transfer stations. Any unauthorized attempts to unlock the system—such as breaking or sawing locks—will trigger alarms that notify the platform or app for prompt action.



Specifications

Item

Description

Dimension(L*W*H)

400*90*80 (mm)

Weight

1.6kg(including standard accessories)

Housing material

PC engineering plastic

Steel locking bar size

450mm*45mm*5.5mm(Customizable length)

Lock bar material

Aluminum + stainless steel

Built-in battery backup

Rechargeable lithium battery 3.7V /2000mAh

Replaceable main battery

Rechargeable lithium battery 3.7V /13000mAh

Mains charging

voltage/current

DC 5V/2500mA

Operating temperature

-10℃ ~ 60℃(high OR low temperature battery versions optional)

Storage temperature

-40℃ ~ 60℃

Relative Humidity

5%~95%

Waterproof and dustproof

grade

IP65

Average dormant current

Turn off SMS Wakeup:<3mA

Average operating current

Operating state average current <60mA(Power consumption without video recording)

GNSS/Cellular Module

Antenna

Built-in

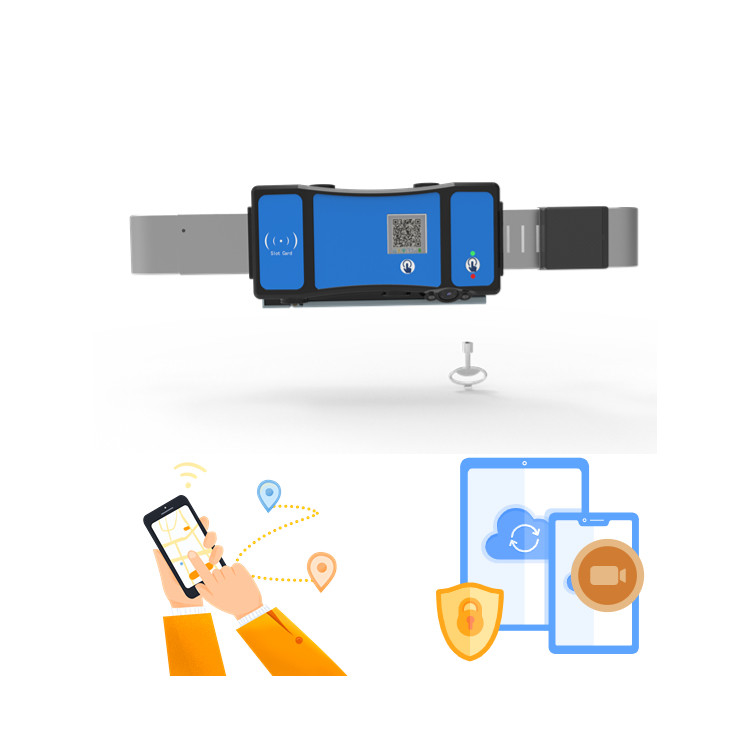

Jointech GPS Container Lock JT705C High-Value Deliveries Secure Tracking Padlock Smart E Padlock Camera Locker 0

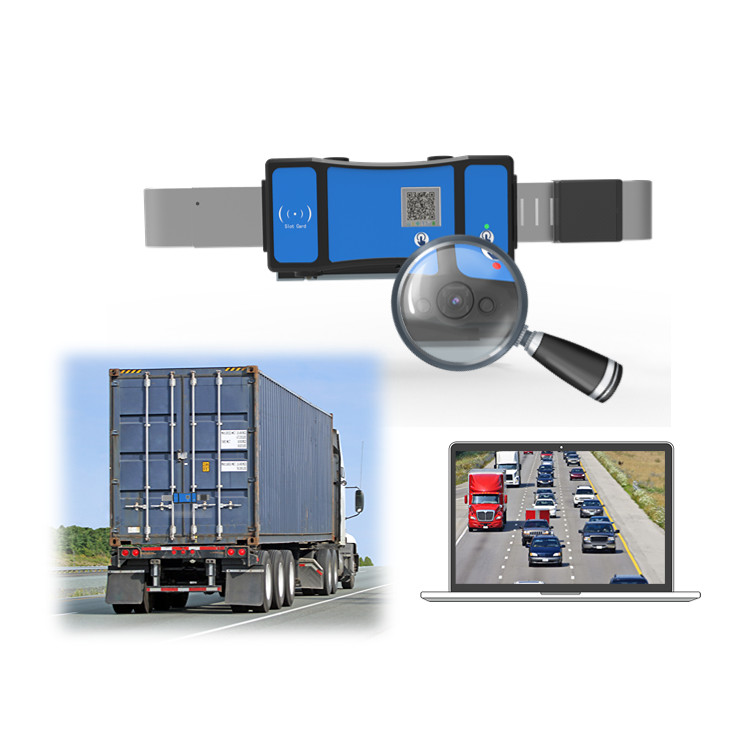

Jointech GPS Container Lock JT705C High-Value Deliveries Secure Tracking Padlock Smart E Padlock Camera Locker 1

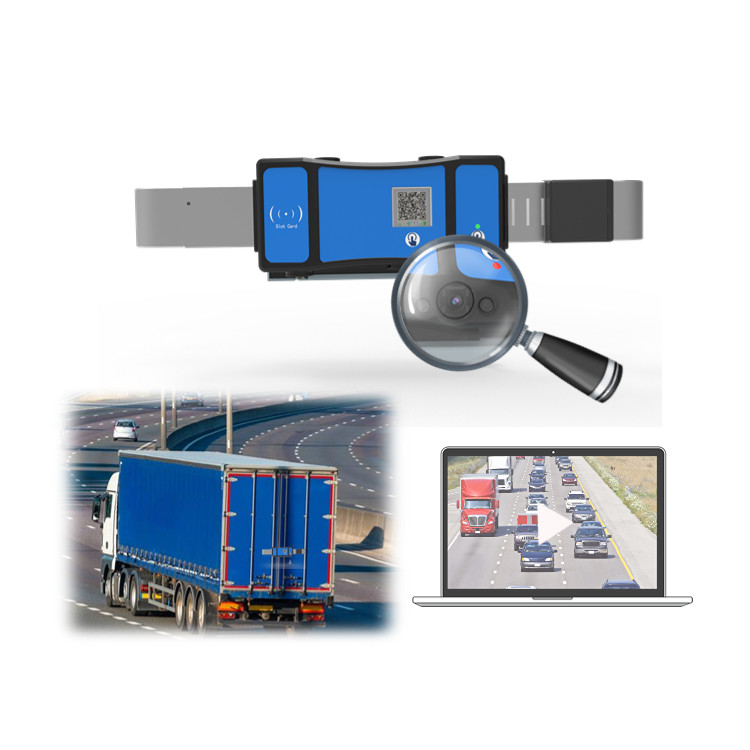

Jointech GPS Container Lock JT705C High-Value Deliveries Secure Tracking Padlock Smart E Padlock Camera Locker 2

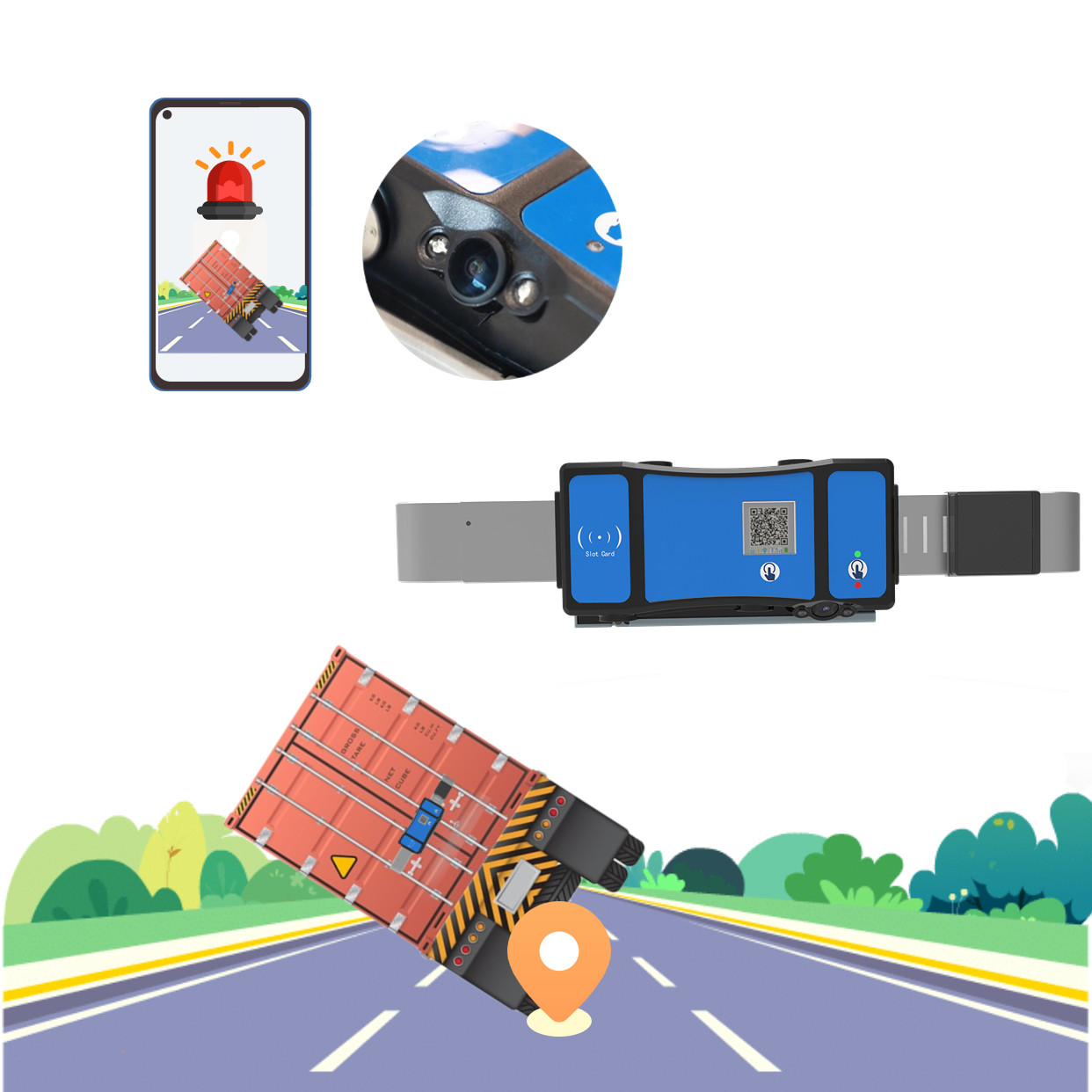

Jointech GPS Container Lock JT705C High-Value Deliveries Secure Tracking Padlock Smart E Padlock Camera Locker 3

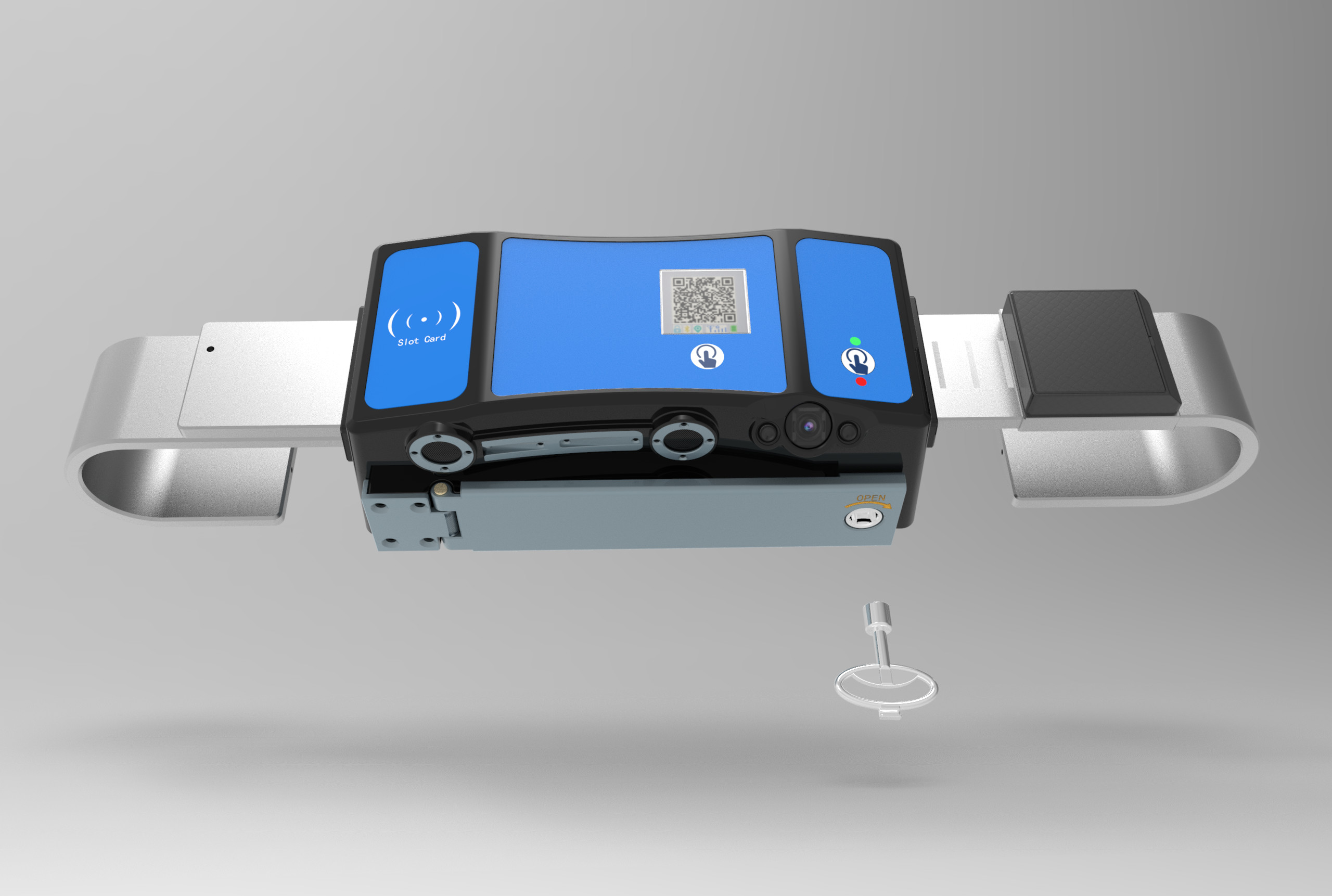

Jointech GPS Container Lock JT705C High-Value Deliveries Secure Tracking Padlock Smart E Padlock Camera Locker 4

Jointech GPS Container Lock JT705C High-Value Deliveries Secure Tracking Padlock Smart E Padlock Camera Locker 5

Jointech GPS Container Lock JT705C High-Value Deliveries Secure Tracking Padlock Smart E Padlock Camera Locker 6





FAQ:

1. Do you have your own factory?

Yes, we are a manufacturer with 18 years of experience. We welcome you to visit our company.



2. Do you have your own tracking platform?

Yes, we can provide not just web based tracking software but also IOS/Android APP



3. What's your delivery time?

For samples, 2-4 days, bulk order, 7-15 days generally



4. What industries does Jointech serve?

Jointech serves a variety of industries, including customs, logistics, transportation, supply chain management and so on.



5. Does Jointech offer customized solutions for specific industries or customers?

Yes, Jointech offers customized solutions tailored to the unique needs of its customers in various industries, such as construction, transportation, and logistics.



6. What is the warranty period for products from Jointech?

The warranty period for products is typically 12 months.



7. What is the lead time for products?

The lead time for products depends on the specific product and order quantity.



8. Can I get a sample of a product before placing an order?

Yes, we can provide samples upon request.



9. How does Jointech ensure the quality of its products?

We have a strict quality control system and all products undergo rigorous testing before shipment. We also welcome you visit our company to check.
