Intelligent Electronic 15000mAh GPS Smart Lock ISO9001 Approved
Contact Person : Paul
Phone Number : +86-755-83237778
WhatsApp : +8618145820075
Minimum Order Quantity : | 2 unit | Price : | negotiate |
---|---|---|---|
Packaging Details : | Carton/wooden box/ customized | Delivery Time : | 2-7 days |
Payment Terms : | T/T | Supply Ability : | 10000 units per month |
Place of Origin: | Guandong,China | Brand Name: | Jointech |
---|---|---|---|
Certification: | CE,ISO9001:2015, ATEX, IEC EX | Model Number: | JT802 |
Detail Information |
|||
Product Name: | Fuel Tank Valve Security Monitoring Fuel Valve Lock | Weight: | 2400g |
---|---|---|---|
Waterproof: | IP67 Protection Grade | Unlocking: | Remote Unlock, Nearby Bluetooth, Physical Key |
Function: | Tanker Manhole Cover & Valve Bluetooth Smart Lock | Application: | Oil Tank Trucks, Fuel Tankers |
Standard Battery: | 4000 MAh, 2 Years Life | Brand: | OEM Brand |
Warranty: | 12months | Dimension: | 248.5*190.1*165mm |
Feature: | Remote Control Slave Unlock | ||
Highlight: | Fuel Tankers Valve Lock,Security Monitoring GPS Smart Lock,Tamper proof GPS Smart Lock |
Product Description

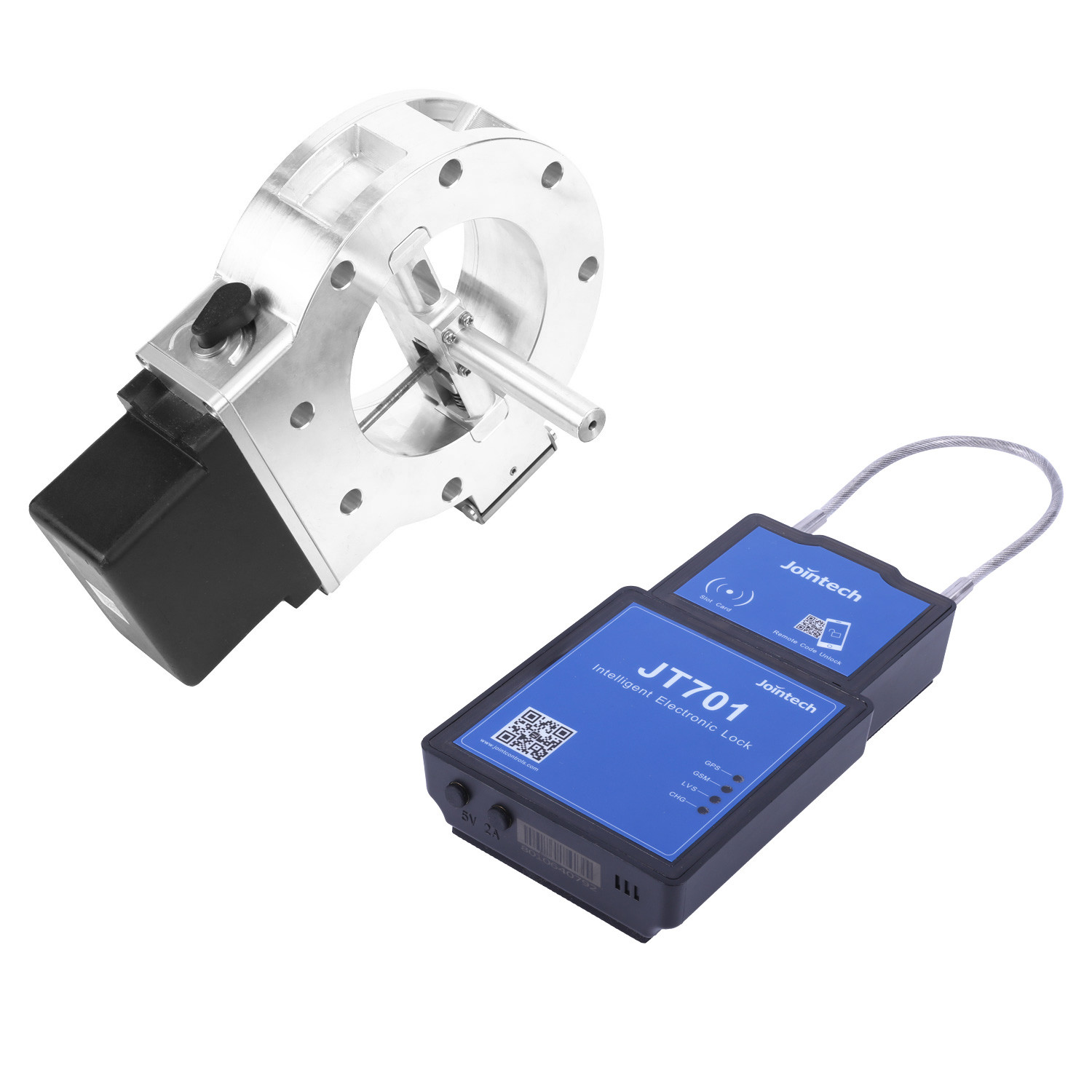

Fuel Tank Valve Security Monitoring Fuel Valve Lock
There has been an increasing demand for oil tank monitoring due to the rise in oil prices and the widespread transportation of oil. However, the scarcity of suitable locks that meet the stringent ATEX certification requirements mandated in oil storage and transport environments has presented a significant challenge.
To address this need, Jointech developed the JT802 valve lock, which is the first lock to meet both ATEX and IEC EX certification standards. The development process took two years and involved multiple iterations and refinements, resulting in an intelligent electronic lock designed to enhance the security of oil tanker valves.
The JT802 offers advanced features for intelligent control of valve lock opening and closing operations, supporting various unlocking methods such as Bluetooth, remote Lora master, or a unique physical key. It has a battery life of up to two years and can operate autonomously or in conjunction with a master lock to manage multiple valves concurrently.
If you need more information or case studies, please don't hesitate to contact us.
Features:
Remote and Bluetooth wireless communication
Anti-explosion certification(ATEX+IEC EX)
Low power consumption, >=2 years working life
Smart unlock and backup physical unlock
Type |
Function |
||
Basic Function |
Transmission mode |
Lora, remotely |
|
Lock status detecting |
Real time |
||
Unlock option |
Remote/Bluetooth |
||
Data info |
Lock status; unlock case; left power |
||
Data storage |
1000 pcs |
||
Alarms |
Low power Valve remove Top Cover open Manual lock cover open Offline alarm (valid with JT701D master) |
||
Battery management |
Low power working mode Sleep mode Low power deep sleep mode |
||
Battery life |
2 years [suppose 10 unlock per day] |
||
Basic Function |
Wake-up resource |
Bluetooth unlock Manual lock cover open RTC Valve remove Manual wake-up |
|
Parameters |
Dimension |
248.5*190.1*165mm |
|
Weight |
2400g |
||
Working and storage temp |
-20℃~60℃ |
||
Relatively humidity |
95% |
||
Battery |
4000mAh |
||
Protection |
IP67 protection grade |
||
Average working current |
16mA |
||
Standby working current |
50uA |
||
Certification |
IECEx: Ex ib IIB T4 Gb ATEx: II 2 G Ex ib IIB T4 Gb |

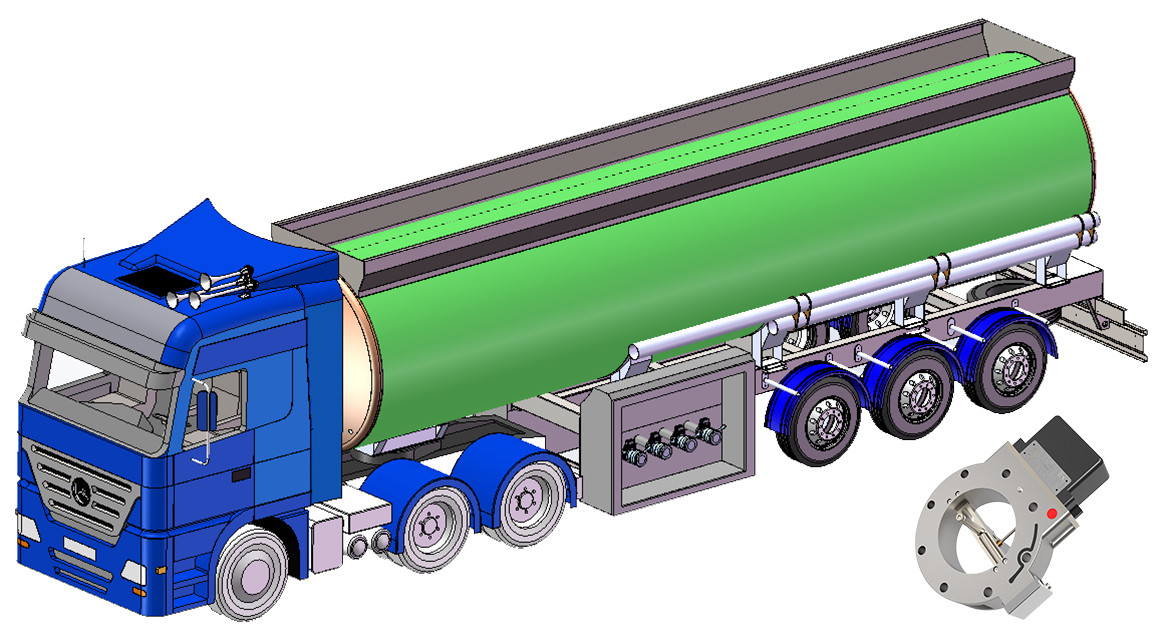

Unique for Oil tank truck ATEX smart gps lock Customized Service:
Integrated Door Magnetic induction, easy installation
Bluetooth/Remote authorization control
Alarm when open the door illegally
Unique label customization with your brand
Joint Cloud tracking platform for oil tank truck lock and unlock remote control
Real-time tracking GPS container lock
Track trace reply
Reports of tracking detail, alarms, driving behavior...
Unlock and unlock case recording
Remote control
Unlock in certain Area only
Jointech Friendly Tracking Platform
