Remote Monitoring GPS Lock Container Monitoring Asset Tracking Security Device

Minimum Order Quantity : 1 unit Price : negoiated
Packaging Details : One small carton size: 23*17*10cm; One big carton with 15pcs small cartons, size: 49*39*31cm. Delivery Time : 3-7 working days
Payment Terms : T/T Supply Ability : 10000 units per months
Place of Origin: China Brand Name: Jointech
Model Number: JT701

Detail Information

Certification: CE Product Name: Container Monitoring Asset Tracking Security Device Remote Monitoring GPS Lock
Feature: Remote Door Control, Real Time Gps Tracking Battery: 3.7V 15000mAh Li-ion Battery
Weight: 1000g With Accessories Waterproof: IP67 Waterproof
Dimension: 195mm X 114mm X 37mm Network: 2G/4G
Application: Container Door, Trailer Door, Truck Door, Cargo, Tanker
High Light:

Container Monitoring GPS Lock

,

GPS Lock for Asset Tracking

,

Remote Monitoring GPS Lock

Product Description

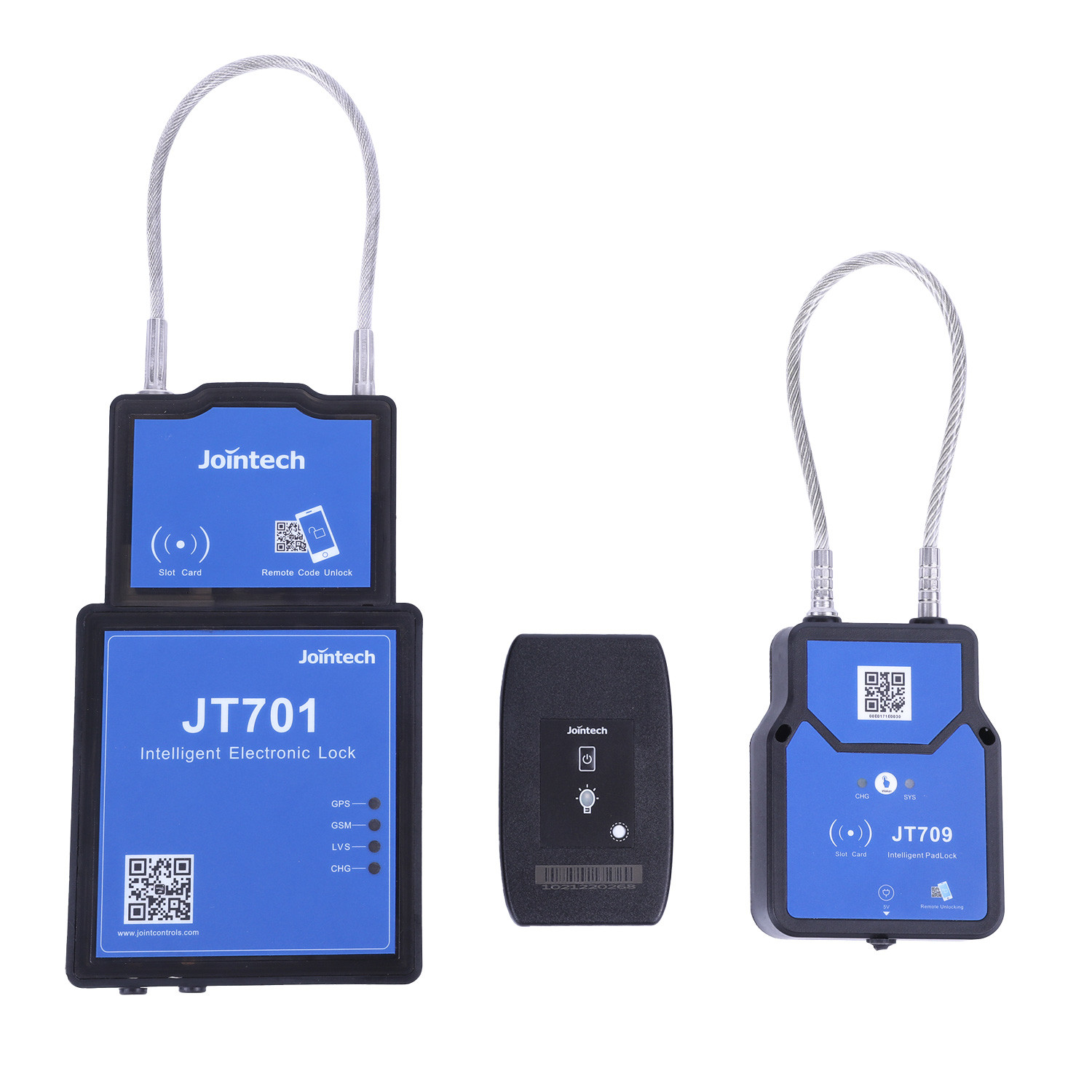

Jointech Smart E lock JT701 Container Monitoring Asset Tracking Security Device Remote Monitoring GPS Lock

The JT701 GPS intelligent electronic lock is a newly designed product that caters to the container GPS tracking and van tracking market. It supports GSM networks and features two working modes: tracking mode, which continuously uploads GPS positions, and standby mode, which captures GPS locations at four time points. With its IP67 waterproof grade, the JT701 is waterproof and dustproof, making it suitable for outdoor use in different weather conditions.





Container 4G GPS tracker JT701 GPS security padlock IP67 waterproof GPS tracking device for container/trailer/trucks

Key Features of the System:



A standalone unit operated by rechargeable battery.



Fast and easy installation by attaching the unit to the container door frame with an electronic lock.



Damage Prevention: There will be alert if someone cut the lock rope or open the back case cover.



A Flexible System that can be fully configured to meet customer requirements, with regards to information, times and signification events in real time

-Examples of real time alerts includes: door open/closed, temperature high/low, battery charge level, location status and any combination of these.



Geo-fencing function raises notifications when a container has entered o rleft a location.



The built-in accelerometer keeps you informed that changes in movement.

When the unit is out of coverage, all location and sensor information is saved to the memory and later transmitted once the unit is back in cellular coverage.



A Web Based System requiring a simple and easy installation process, we can provide multiple monitoring platform, which include web based tracking software and APP (IOS/Android)



Cooperation Tracking Platform: Wialon GPS tracking system.



Specifications:

Type

Description







Basic

Function

Transmission Mode

TCP

Data automatic upload

Time interval

Locating mode

GPS

Vibration detecting

Built in 3G sensor

Lock status monitoring mode

Real time monitoring

Unlock

RFID/Remote password

Wake up mode

Call/SMS/Swiping RFID card/ Vibration/ E-string brake



Alarm

E-String brake alarm

Swiping card alarm

Unlock alarm

Wrong password alarm

Geofence alarm















Parameters

Dimension(L×W×H)

195mmx114mmx37mm

Weight

700g(includes standard accessories)

Material

Engineering plastic

Built-in battery

15000mAh rechargeable Li-ion

Working temperature

-20℃ — +60℃

Storage temperature

-40℃ — +80℃

Relative humidity

5% — 99%

Protection grade

IP67

Average standby current

Less than 0.1 mA

Average working current

Less than 90 mA

Backup battery

8.4V 400 mAh NI-MH battery

GPS antenna

embedded

GSM frequency

Quad Band: 900/1800/1900Mhz





Container 4g GPS tracker GPS security padlock IP67 waterproof GPS tracking device for container/trailer/trucks

Structure

Container 4g GPS tracker GPS security padlock IP67 waterproof GPS tracking device for container/trailer/trucks

Five ways to unlock

Unlock by RFID/ APP/ Bluetooth/remote unlocking of the system/ password unlock or SMS unlock

Container 4g GPS tracker GPS security padlock IP67 waterproof GPS tracking device for container/trailer/trucks



Monitoring System: Including web based tracking software and APP (IOS/Android)

Container 4g GPS tracker GPS security padlock IP67 waterproof GPS tracking device for container/trailer/trucks
