Tank Valve Lock Bluetooth Smart Unlock Tamper Alarm Administrator Only

Minimum Order Quantity : 2 unit Price : negotiate
Packaging Details : Carton/wooden box/ customized Delivery Time : 2-7 days
Payment Terms : T/T Supply Ability : 10000 units per month
Place of Origin: Guandong,China Brand Name: White brand
Certification: CE,ISO9001:2015, ATEX, IEC EX Model Number: JT802 valve lock

Detail Information

Product Name: Tank Valve Lock Bluetooth Smart Unlock Weight: 2400g
Protection Grade: IP67 Waterproof Unlocking: Remote And Nearby Multiply Ways Unlock
Function: Tank Valve Lock Administrator Only Application: Fuel Tank Trucks, Chemical Tanker, Waste Tanker
Standard Battery: 4000 MAh, 2 Years Battery Life Brand: Your Band
Warranty: 1 Year Dimension: 248.5*190.1*165mm
High Light:

Tamper Alarm Valve Lock

,

Smart Unlock Valve Lock

,

Bluetooth Valve Lock

Product Description

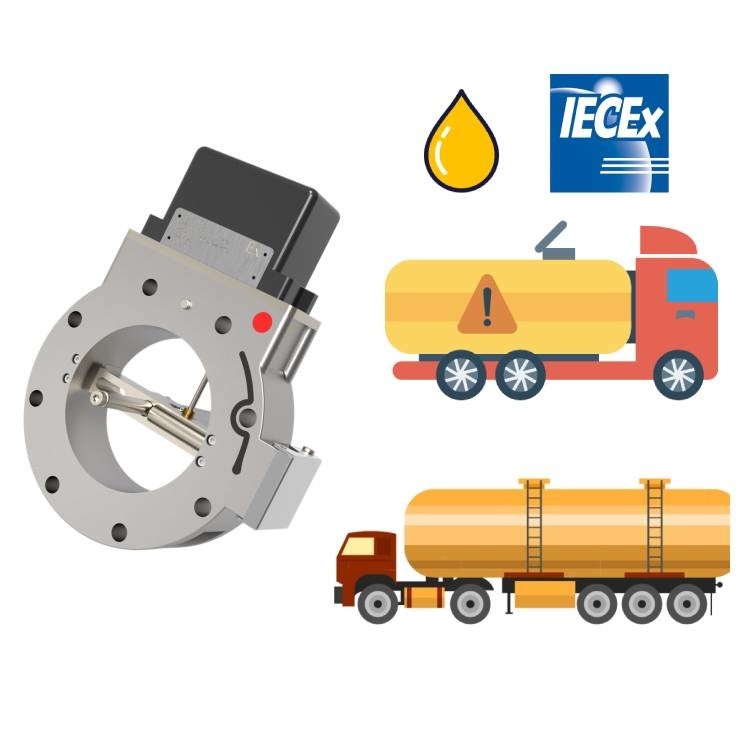

Tank valve lock Bluetooth Smart Unlock Tamper Alarm administrator only
Tank Valve Lock Bluetooth Smart Unlock Tamper Alarm Administrator Only 0

This smart Valve lock JT802 is one of the few smart valve locks, which can be used to remotely monitor and control the cargo unload and report the case in real time.

The development progress takes 2+ years along with various change and modification to meet the ATEX and IEC EX certification request.

This valve lock is target for various tank truck, no matter what cargo that carried, to intelligently control the outlet valve lock open and close. The unlock methods can be Bluetooth nearby, and the remotely way usually is by platform smartly.


It usually work together with master lock for multi-valves controlling.  Now it has been used for fuel company in the middle east, to help them monitor the transportation oil trucks. Catch me to get some specific case study and check whether this lock helps you!


Features:

  • Remote monitor truck location and valve open/close

  • Support ATEX dangerous enviorment

  • 2 years long battery life, if unlock 10 times a day.

  • Smart management for digital system with high efficiency

  • Only administrator can open the lock

Type

Function

Basic Function

Transmission mode

Lora, remotely

Lock status detecting

Real time report

Unlock option

Remote and Bluetooth

Data info

Lock status; unlock alarm; low power

Data storage

1000 pcs

Alarms

Low power alarm
Valve remove detecting
Top Cover open alarm
Manual lock cover open
Offline alarm (valid with JT701D master)

Battery management

Low power management
Sleep mode

Battery life

2 years
[suppose 10 unlock per day]

Basic Function

Wake-up resource

Bluetooth unlock
Manual lock cover open
RTC
Valve remove
Manual wake-up

Parameters

Dimension

248.5*190.1*165mm

Weight30

3kg, stainless material

Working and storage temp

-20℃~60℃

Relatively humidity

95%

Battery

4000mAh

Protection

IP67 protection grade

Average working current

16mA

Standby working current

50uA

Certification

IECEx: Ex ib IIB T4 Gb
ATEx: II 2 G Ex ib IIB T4 Gb


Tank Valve Lock Bluetooth Smart Unlock Tamper Alarm Administrator Only 1

Valve lock JT802 for fuel tank monitoring and administrator control FAQ:


1) Do you have your own factory?
A: Yes, we developed our hardware and produce them in our factory with 16 years' history.


2) Do you provide customized hardware and software?
A: Yes, we can provide not just customized hardware, but also software funcationalities.
