Jointech JT701 4G E Seal Smart GPS Navigation Electronic Tracking Seal

Minimum Order Quantity : 1 Price : USD188 ~ 248 per unit
Packaging Details : Carton: 50.5cm x 40.5cm x 31cm Delivery Time : 3 ~ 45 days
Payment Terms : T/T, Paypal, Alipay, etc. Supply Ability : 50,000 per month
Place of Origin: China Brand Name: Jointech
Certification: CE, ROHS Model Number: JT701

Detail Information

Product Name:: Smart GPS Navigation Electronic Tracking Seal Application: Container, Trailer, Cargo Tracking, Door Sealing
Feature: Real Time Tracking, Remote Door Control, Remote Seal Unseal Unlock Option: RFID, SMS, Web, Mobile APP
Battery: 3.7V 15000mAh Li-ion Battery Lock Cable: 3.5mm In Diameter, Reusable
Network: 2G/3G/4G Dual Sim: Micro Sims
Protection Grade: IP67
High Light:

4G E Seal

,

GPS Navigation E Seal

,

Electronic Tracking Seal

Product Description

Jointech JT701 4G Smart GPS Navigation Electronic Tracking Seal

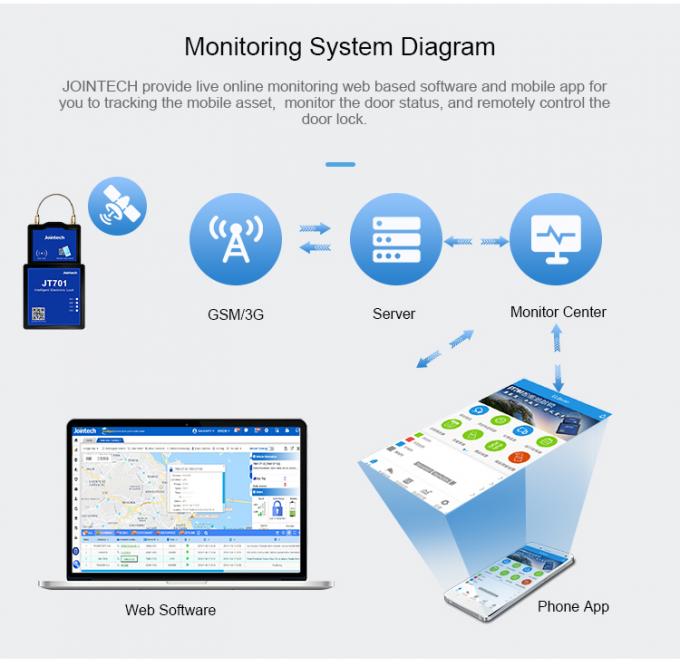

JT701 Navigation E-seal is the electronic seal with GPS tracking function, can be tracked in real time, and unsealed by authorized RFID card on site or remotely by mobile app, SMS or software; flexible lock cable length, live tamper alert etc.



1. Main features:

1). Live GPS tracking;

2). Door locking status monitoring;

3). On site unlock by authorized RFID;

4). Remote unlock by SMS, Software;

5). Real time tamper alert for prompt response;

6). IP67 waterproof to be used outdoor;

7). Big battery lasts more than 7 days at 1 data/minute;

8). Easy to install with magnet base;

9). Adjustable metal string adapt to container, van truck, cargo and valuable assets.

2.

Product durability - Jointech intelligent padlocks tracks over 10,0000 containers annually around the world , 90% of devices are used in customs supervision(30+ customs in different countries), except replacing some of the batteries after three years of very frequent operation, they have devises over six years old working in perfect conditions.



Increased freight in-transit visibility:
o Real-time Information of the entire operation with a single data base information platform.
o Prevention of smuggling


Increased cargo traceability:
o Integrated statistical data of the entire process
o Reduction of cargo theft – piracy

Improved planning and operational efficiency:
o Improve customs clearance efficiency
o Reduce customs workload
o Improve transportation efficiency of logistics enterprises



3. Specification:

Physical Dimensions 195mm x 114mm x 37mm
Specification Weight 1.2kg (with standard accesorries)
Material Shell Hardened plastic black plated
  Lock cable 304 stainless steel
Environmental Operational Temperature -20°C -- +60°C
Condition Storage temperature -40°C -- +80°C
  Operational Humidity 5 ~ 99%
  Low temperature battery available
Cellular GSM/GPRS default Quad band (850, 900, 1800, 1900)
Communication 4G LTE band: B1/B2/B3/B4/B5/B7/B8/B12/B13
    /B18/B19/B20/B25/B26/B28/B34
    /B38/B39/B40/B41/B66
  UMTS/HSPA+: B1/2/B4/B5/B6/B8/B19
  Data Channels SMS&TCP/IP
Location Type GPS
  TTFF 2 sec (hot start)
    Velocity: 02m/s (50%)
  Antenna type Built-in (concealed)
CPU Static RAM 48KB
  Flash Memory 256KB
Battery Type&capacity LI-ION 15000mAh, rechargeble)
Supply Power input DC 5V 2A
Power consumption Sleep/Idle <0.1mAh
  GPS & GPRS <90mAh
RFID Radio Frequency 125K
Sensor Motion detection 3 axis accelerometer
Access Port Type USB / serial port
Memory Data logs 24,000 logs


Jointech JT701 4G E Seal Smart GPS Navigation Electronic Tracking Seal 1

Jointech JT701 4G E Seal Smart GPS Navigation Electronic Tracking Seal 2

Jointech JT701 4G E Seal Smart GPS Navigation Electronic Tracking Seal 3

Jointech JT701 4G E Seal Smart GPS Navigation Electronic Tracking Seal 4
