JT705A Container Gps Tracking Lock for Cargo Transportation with Remote Unlock
Contact Person : Paul
Phone Number : +86-755-83237778
WhatsApp : +8618145820075
| Minimum Order Quantity : | 2 unit | Price : | negotiate |
|---|---|---|---|
| Packaging Details : | Carton/wooden box/ customized | Delivery Time : | 2-7 days |
| Payment Terms : | T/T | Supply Ability : | 10000 units per month |
| Place of Origin: | Guandong,China | Brand Name: | Jointech |
|---|---|---|---|
| Certification: | CE,ISO9001:2015, ATEX, IEC EX | Model Number: | JT802 |
|
Detail Information |
|||
| Product Name: | ATEX Explosion-proof Tanker Valve Monitoring Device | Weight: | 2400g |
|---|---|---|---|
| Waterproof: | IP67 Protection Grade | Unlocking: | Remote Unlock, Nearby Bluetooth, Physical Key |
| Function: | Tanker Bottom Valve Bluetooth Smart Lock | Application: | Oil Tank Trucks, Fuel Tankers |
| Standard Battery: | 4000 MAh, 2 Years Life | Brand: | OEM Brand |
| Warranty: | 12months | Dimension: | 248.5*190.1*165mm |
| High Light: | Tanker Valve Monitor GPS Tracker,4000mAh Monitor GPS Tracker,ATEX gps tracker with fuel monitoring |
||
Product Description

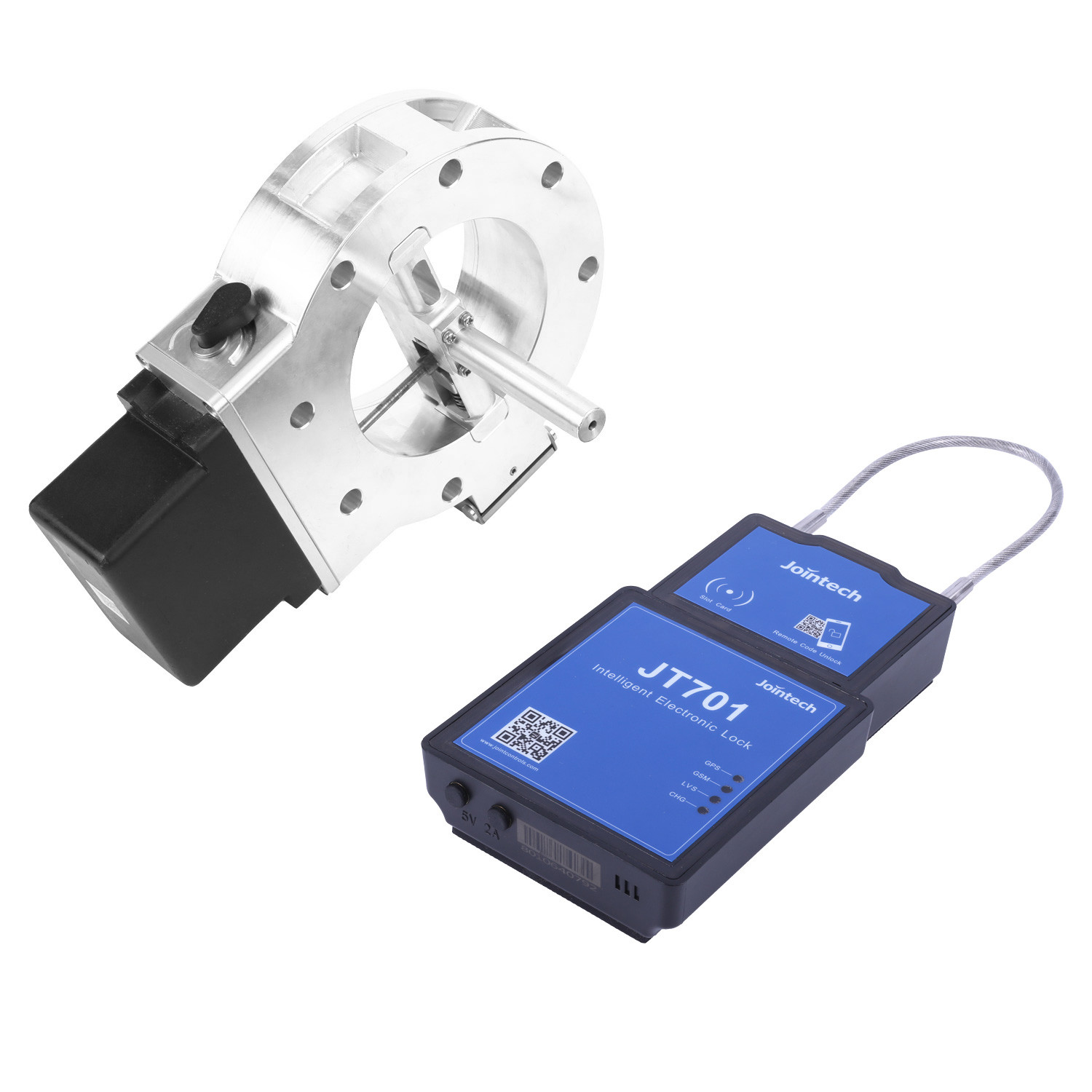

Atex Explosion-Proof Tanker Valve Monitoring Device Mounted On The Main Hole Closure Cover
Today, tankers are everywhere and oil prices are rising. The demand for tank monitoring is increasing. But many years ago, no suitable locks were officially ATEX certified for the stringent requirements of oil storage and delivery environments.
Jointech decided to be the first. This development required 2 years and various changes and modifications to meet ATEX and IEC EX certification requirements. Finally, the JT802 valve lock is here.
Intelligent valve monitoring device JT802 is the oil tanker valve safety lock object, intelligent control outlet valve lock open and close. It can be unlocked by nearby Bluetooth, it can be remote via Lora master, and it can be the only physical key.
It works alone and has a 2-year battery life. It can also be combined with themaster lock to realize multi-valve controlling.
Grab me for some specific case studies!
Features:
|
Type |
Function |
||
|
Basic Function |
Transmission mode |
Lora, remotely |
|
|
Lock status detecting |
Real time |
||
|
Unlock option |
Remote/Bluetooth |
||
|
Data info |
Lock status; unlock case; left power |
||
|
Data storage |
1000 pcs |
||
|
Alarms |
Low power Valve remove Top Cover open Manual lock cover open Offline alarm (valid with JT701D master) |
||
|
Battery management |
Low power working mode Sleep mode Low power deep sleep mode |
||
|
Battery life |
2 years [suppose 10 unlock per day] |
||
|
Basic Function |
Wake-up resources |
Bluetooth unlock Manual lock cover open RTC Valve remove Manual wake-up |
|
|
Parameters |
Dimension |
248.5*190.1*165mm |
|
|
Weight |
2400g |
||
|
Working and storage temp |
-20℃~60℃ |
||
|
Relatively humidity |
95% |
||
|
Battery |
4000mAh |
||
|
Protection |
IP67 protection grade |
||
|
Average working current |
16mA |
||
|
Standby working current |
50uA |
||
|
Certification |
IECEx: Ex ib IIB T4 Gb ATEx: II 2 G Ex ib IIB T4 Gb |
||
Unique for Oil tank truck ATEX smart gps lock Customized Service:
Integrated Door Magnetic induction, easy installation
Bluetooth/Remote authorization control
Alarm when open the door illegally
Unique label customization with your brand
Jointech Cloud tracking platform for oil tank truck lock and unlock remote control
Real-time tracking GPS container lock
Track trace reply
Reports of tracking detail, alarms, driving behavior...
Unlock and unlock case recording
Remote control
Unlock in certain Area only
