Intelligent Electronic 15000mAh GPS Smart Lock ISO9001 Approved
Contact Person : Paul
Phone Number : +86-755-83237778
WhatsApp : +8618145820075
Minimum Order Quantity : | 2 unit | Price : | negotiate |
---|---|---|---|
Packaging Details : | Carton/wooden box/ customized | Delivery Time : | 2-7 days |
Payment Terms : | T/T | Supply Ability : | 10000 units per month |
Place of Origin: | Guandong,China | Brand Name: | Jointech |
---|---|---|---|
Certification: | CE,ISO9001:2015, ATEX, IEC EX | Model Number: | JT802 |
Detail Information |
|||
Product Name: | ATEX Oil Tanker Smart Gps Lock | Weight: | 2400g |
---|---|---|---|
Waterproof: | IP67 Protection Grade | Unlocking: | Remote Unlock, Nearby Bluetooth, Physical Key |

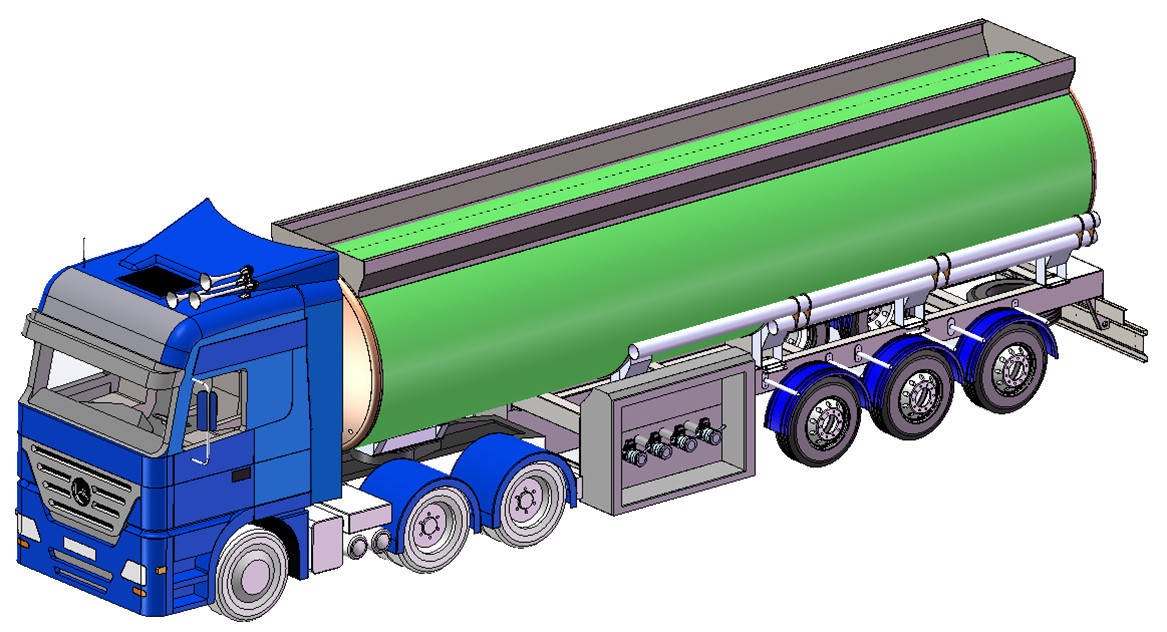

Function: | Tanker Bottom Valve Bluetooth Smart Lock | Application: | Oil Tank Trucks, Fuel Tankers |
Standard Battery: | 4000 MAh, 2 Years Life | Brand: | OEM Brand |
Warranty: | 12months | Dimension: | 248.5*190.1*165mm |
Highlight: | ATEX Anti Explosion Oil Tanker,Valves Monitoring Devices Loading Tankers,Mounting Mainhole Closing Covers Monitoring |
Product Description
ATEX Anti Explosion Oil Tanker Valves Monitoring Devices Loading Tankers Mounting Mainhole Closing Covers Monitoring
Nowadays, oil tank transportation is everywhere, oil price is increasing. The market needs to monitor oil tanks is keep increasing. But years ago, no suitable lock can formally pass ATEX certification which is strictly required by oil storage and oil transport surroundings.
Then Jointech decided to be the first one. This development take 2 years along with various change and modification to meet the ATEX and IEC EX certification request. And finally JT802 valve lock comes.

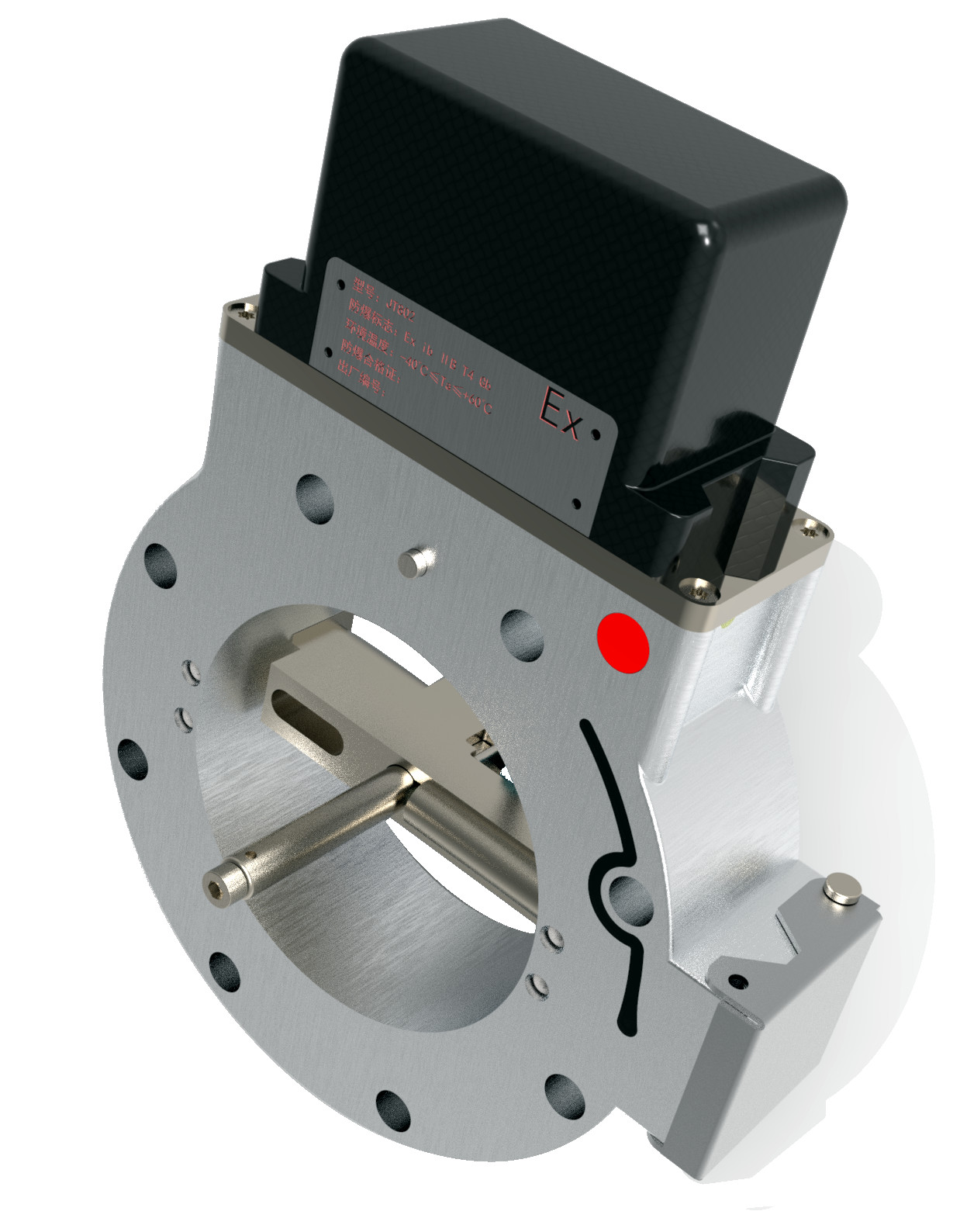

Smart Valve Monitoring Device JT802 is target for oil tanker valve security lock, to intelligently control the outlet valve lock open and close. The unlock method can be Bluetooth nearby, can be remotely via Lora master, can be unique physical key.
It can work alone itself, with 2 years battery life. It can also work together with master lock for multi-valves controlling together.
Catch me to get some specific case study!
Features:
Remote and Bluetooth wireless communication
Anti-explosion certification(ATEX+IEC EX)
Low power consumption, >=2 years working life
Smart unlock and backup physical unlock
Type |
Function |
||
Basic Function |
Transmission mode |
Lora, remotely |
|
Lock status detecting |
Real time |
||
Unlock option |
Remote/Bluetooth |
||
Data info |
Lock status; unlock case; left power |
||
Data storage |
1000 pcs |
||
Alarms |
Low power Valve remove Top Cover open Manual lock cover open Offline alarm (valid with JT701D master) |
||
Battery management |
Low power working mode Sleep mode Low power deep sleep mode |
||
Battery life |
2 years [suppose 10 unlock per day] |
||
Basic Function |
Wake-up resource |
Bluetooth unlock Manual lock cover open RTC Valve remove Manual wake-up |
|
Parameters |
Dimension |
248.5*190.1*165mm |
|
Weight |
2400g |
||
Working and storage temp |
-20℃~60℃ |
||
Relatively humidity |
95% |
||
Battery |
4000mAh |
||
Protection |
IP67 protection grade |
||
Average working current |
16mA |
||
Standby working current |
50uA |
||
Certification |
IECEx: Ex ib IIB T4 Gb ATEx: II 2 G Ex ib IIB T4 Gb |
Unique for Oil tank truck ATEX smart gps lock Customized Service:
Integrated Door Magnetic induction, easy installation
Bluetooth/Remote authorization control
Alarm when open the door illegally
Unique label customization with your brand
Joint Cloud tracking platform for oil tank truck lock and unlock remote control
Real-time tracking GPS container lock
Track trace reply
Reports of tracking detail, alarms, driving behavior...
Unlock and unlock case recording
Remote control
Unlock in certain Area only
