waterproof IP67 E Seal For Container Logistic GPS Electronic Container Lock

Minimum Order Quantity : 2 Price : 49
Packaging Details : 100pcs /carton, carton size: 50*40*30cm, weight: 12KG Delivery Time : 3-5 days
Payment Terms : L/C, T/T Supply Ability : 10000pcs
Place of Origin: China Brand Name: Jointech
Certification: CE, FCC Model Number: JT707A

Detail Information

Color: Black Material: Plastic, Metal
Unsealing Method: Cutting Lithium Battery: 1500mAh
Module: GPS, GSM Module Voltage Input: DC 5V, 1A
Usage Environment: Container, Trailer, Van Truck Working Duration: 6months
High Light:

Waterproof E Seal For Container

,

Logistic GPS E Seal For Container

,

IP67 Electronic Container Lock

Product Description

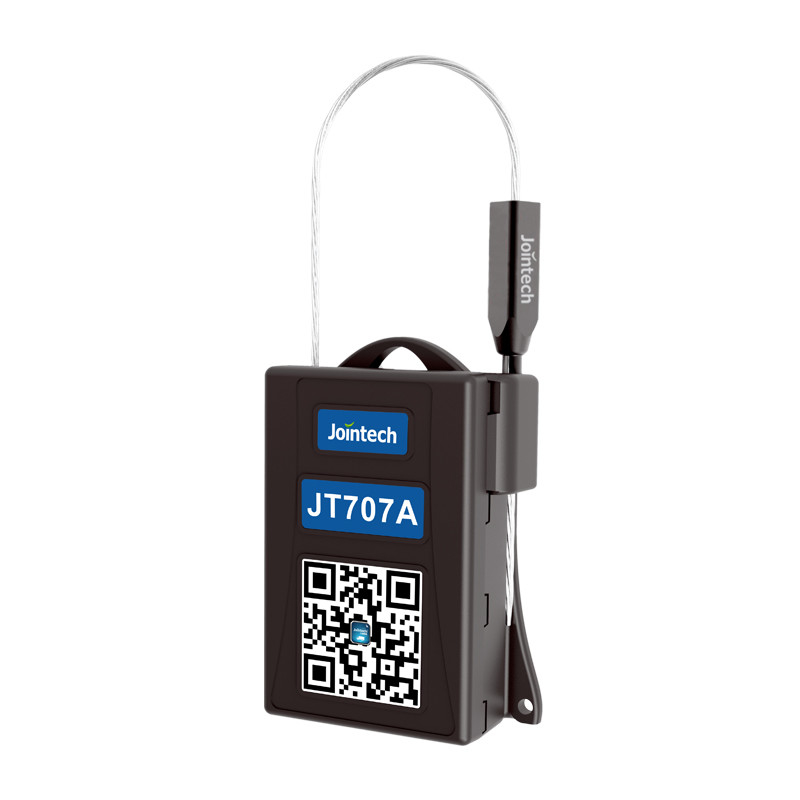

Container Logistic GPS Electronic Seal Tracker

Brief Introduction

JT707A is a kind GPS electronic seal tracker, which is used for asset tracking, sealing and cargo secuirty solution. Device is with features: inbuilt GPS, GSM module for global locating and real time tracking, waterproof IP67 for ourdoor hard environment, replaceable seal cable, seal cable cut alert, etc. It is suitable to asset tracking and monitoring in transportation, such as: ISO container, trailer, and van truck, etc.



Applications:
It is suitable to logistic asset tracking, like: container, trailer, van truck, etc.



Parameters

Type Description
Locating GPS, Bedou, LBS
Data content: coordinates, speed, date, direction
Information Status of seal cable, motion sensor, location, battery
Unlocking counting
Storage Maximum 1000 data storage
Uploading blind area data
Communication 2G/3G supported
Alarm Seal cable cut alert, low battery alert.
Battery management Support 600 times data reporting
Low battery management

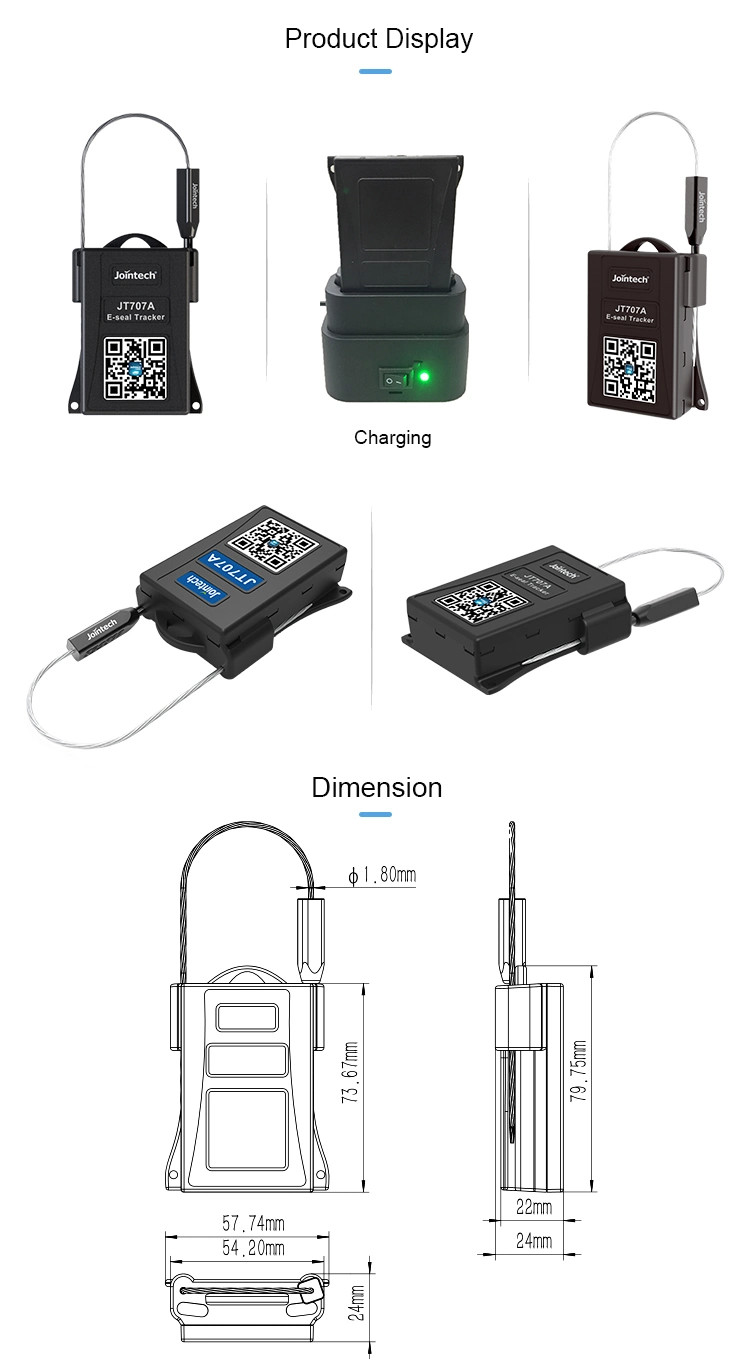

Parameters Dimension(L*W*H): 46*21*52mm
Length of seal cable: 300mm
Weight: 67g
Housing material: Nylon
Working temperature: -30℃ ~+70℃
Storage environment: -45℃~+80℃
Related humidity: 5%~95%
Working current: <100mA(average), <20uA(standby)
Battery level: 1500mAh
Waterproof: IP67
GSM module frequency: 850, 900, 1800, 1900MHz
GPS module: GPS L1 frequency(1575.42MHz), Beidou B1 frequency(1561.0MHz)
