DC2.0 Connector BLE GPRS GPS Seal Lock 4G CAT1 Mobile Phone Lock

Minimum Order Quantity :	2	Price :	$99
Packaging Details :	Carton	Delivery Time :	1-7 working days
Payment Terms :	T/T	Supply Ability :	5000pcs per month

Place of Origin:	China	Brand Name:	Jointech
Model Number:	JT709C

Detail Information
Product Name:	Smart GPS Seal Lock Smart BLE/GPRS Unlocking Lock Mobile Phone	Name:	Smart BLE/GPRS Unlocking Lock Mobile Phone
Material:	PA66+GF Engineering Plastic	Size:	About 88 6230(mm)
Steel Lock Rope Length:	230mm	Charging Interface:	DC2.0 Connector
Highlight:	DC2.0 Connector GPS Seal Lock , BLE GPRS GPS Seal Lock , 4G CAT1 Mobile Phone Lock

Product Description

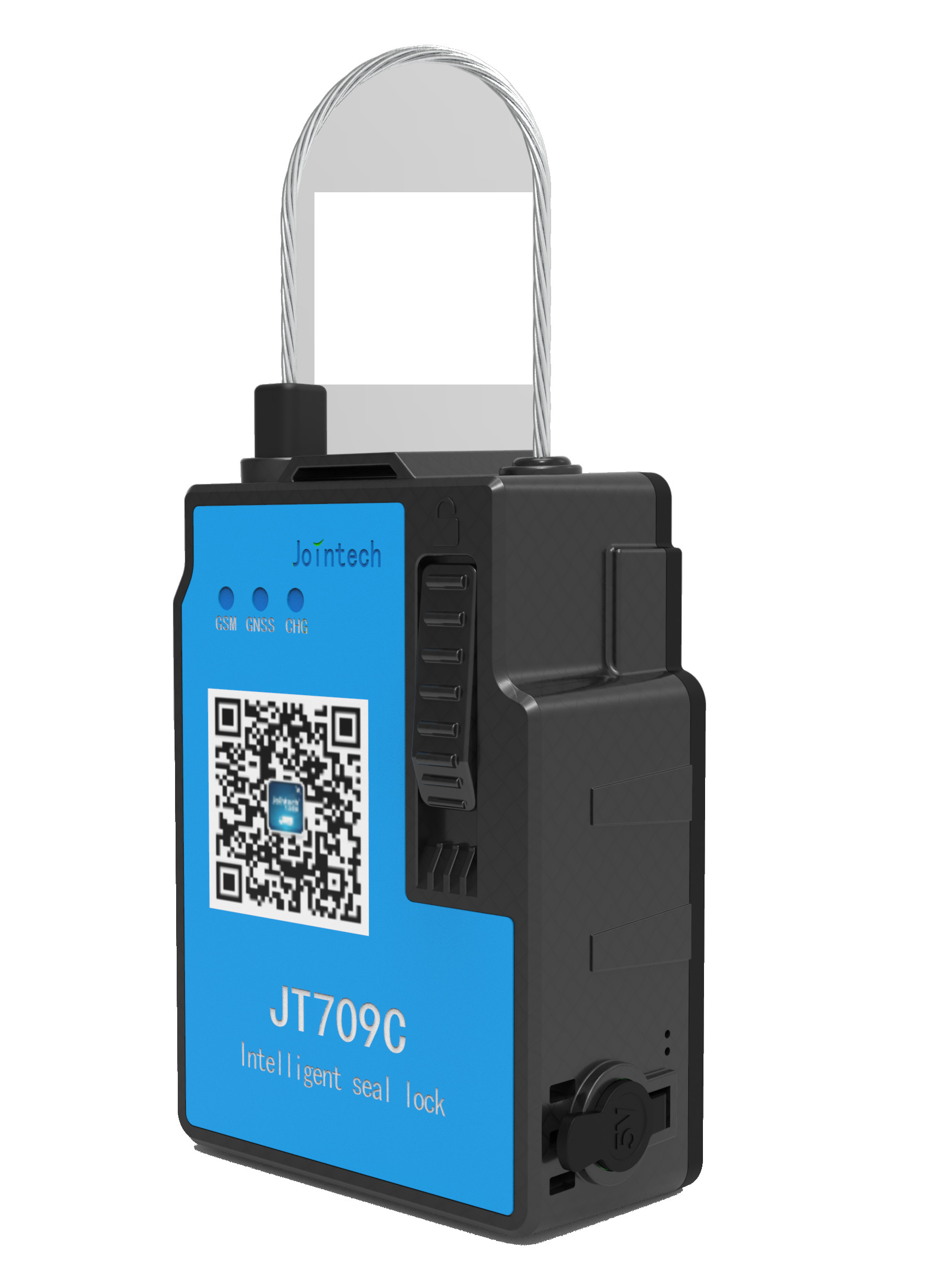

Intelligent Container Monitoring GPS Seal Padlock JT709C

JT709C smart BLE lock is a small size electronic seal lock for remote control security of vehicle, with rechargeable lithium battery, can be used repeatedly. It provides high-precision asset timing tracking information and supports remote online, on-site BLE offline unlocking, and supports real-time monitoring and monitoring on different platforms. Real-time tracking information such as historical track playback and lock status provide customers with lower cost, safer, more efficient, and more intelligent mobile asset location management solutions.

Item	Parameters
Size	About 88 6230(mm)
Weight	About 200g
Shell Material	PA66+GF engineering plastic
The diameter of the lock rope	The diameter of the wire rope is 1.8mm, which can be reused
Steel lock rope length	230mm (length can be customized)
Lock rope material	304stainless steel
Support pull	＞60kg
Data communication and storage	The default 4G CAT1 network data upload, optional 2G GPRS network; Can store 2000 alarms, position messages and switch lock event data
Communication mode	Support TCP, SMS
SIM card	Micro-SIM card
Bluetooth wireless communication	Bluetooth 4.2 or above, effective communication distance in open space> 10M
Positioning	Beidou, GPS, LBS
Vibration sensor	Built-in 3-axis Gsensor
Endurance	The following data are obtained when GPS and GSM signals are good, and are not applicable under bad signal conditions: 5s interval continuous work: 1 day 2 hours; Continuous working at 30s interval: 2 days and 1 hour; Continuous work at 60s interval: 3 days and 4 hours; One piece of data at 10min interval: 16 days; One piece of data at 60min intervals: 35 days.
Working current	The average current in working state is less than 40mA;
Standby current	Average standby current in fixed timing mode: <80uA
Battery	Rechargeable lithium battery 3.7V /2600mAh
Charging interface	DC2.0 connector
Charging current	1000mA
Protection grade	IP67
Working temperature	-10℃--60℃,(high temperature and low temperature battery versions can be customized)
Storage temperature	-40℃--60℃
Relative humidity	5%—95%
