850MHz GPS Smart Lock , JT707A Shipping Container Padlock

Minimum Order Quantity : 1unit Price : negotiate
Packaging Details : carton/wooden box/ customized Delivery Time : 2-7days
Payment Terms : T/T Supply Ability : 10000units per months
Place of Origin: Guangdong, China Brand Name: Jointech
Certification: CE Model Number: JT707A

Detail Information

Product Name: Container Electronic Padlock For Container Monitoring Application: Ocean Container Shipping, Long Trip Monitoring
Network: 2g Feature: Remote Online Monitoring
Battery: 1500mAh Alarms: Lock Rope Cutting, Open Back Cover, Low Battery
Function: Cargo Security Platform: Web Based And Pc Based Software
High Light:

850MHz gps smart lock

,

JT707A shipping container padlock

,

JT707A gps smart lock

Product Description

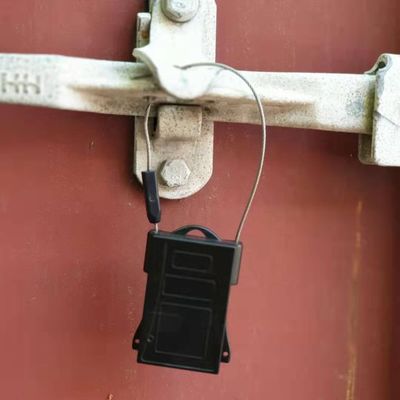

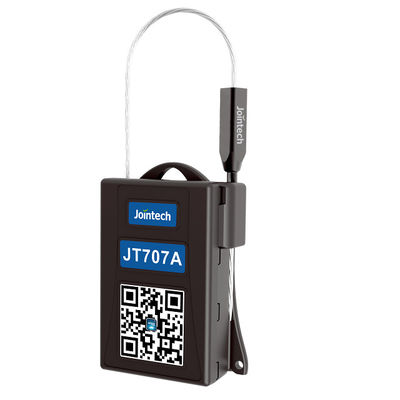

850MHz GPS Smart Lock , JT707A Shipping Container Padlock 0

Container Electronic Padlock For Container Monitoring Under Customs Supervision



JT707A, an small Intelligent GPS tracking seal for mobile assets management solutions. It is easy installation and low cost which supports GPS and Beidou. Real-time tracking information for assets and remote changing of product’s configuration are available. Coupled with rechargeable or disposable Li-ion battery. Because of the low cost, it is widely used in some non-recyclable lock application.



Main Functions:

1. Location: Coordinate, speed, date, direction

2. Information: Status of lock rope, motion sensor, location, battery

Live record of locking & unlocking

3. Storage: Max 1000 logs

Data upload in blind area

4. Communication: 2G, 3G, 4G

5. Trigger mode: Periodical wake-up, seal, unseal, vibration

6. Alarms: Rope cut alarm, Low battery alarm

7. Battery management: Above 600 reports / Low battery management

8. Configuration: COM port




Main Functions

Location
GPS/Beidou/LBS
Coordinates, speed, date, direction

Information
Status of Lock rope, motion sensor, location, battery
Live records of Locking & Unlocking

Storage
Max 1000 logs
Upload data in blind area


Communications
2G/3G/4G supported
Live data, blind area data, alarms
Periodical wake-up (interval of moving or standing can be set)
Trigger mode
Periodical wake-up, seal, unseal, vibration

Alarms
Rope-cut alarm
Low battery alarm
Battery Management
Above 600 reports (if fully charged)
Low battery management
Configuration
COM port
Parameters
Dimension (L*W*H)
46*21*52mm
Length of lock rope
300mm (with unique ID)
Weight
67g
Housing material
Nylon
Working temperature
-30°C -- +70°C
Storage temperature
-40°C -- +85°C
Relative Humidity
5%—95%
Working current
<100mA (av.) <20uA (standby)
Battery
1500mAh
Waterproof
IP65
GSM module
850MHz/900MHz, DSC 1800MHz, PCS 1900MHz
GPS/Beidou
GPS L1 frequency (1575.42 MHz); Beidou B1 frequency (1561.10MHz)



850MHz GPS Smart Lock , JT707A Shipping Container Padlock 1
850MHz GPS Smart Lock , JT707A Shipping Container Padlock 2
850MHz GPS Smart Lock , JT707A Shipping Container Padlock 3
850MHz GPS Smart Lock , JT707A Shipping Container Padlock 4

850MHz GPS Smart Lock , JT707A Shipping Container Padlock 5
850MHz GPS Smart Lock , JT707A Shipping Container Padlock 6
850MHz GPS Smart Lock , JT707A Shipping Container Padlock 7

We also have our own GPS tracking plaform, the Jointech Cloud Tracking Platform. You can check the your route on the platform.

850MHz GPS Smart Lock , JT707A Shipping Container Padlock 8

850MHz GPS Smart Lock , JT707A Shipping Container Padlock 9

Our Company Profile:


Founded in 2006, Shenzhen Joint Technology company limited is a state-level high-tech enterprise, which registers in New OTC market in 2016. (Stkcd: 835897).

Jointech has been focusing on offering online solution of mobile assets monitoring & management for logistics equipments among specific IOT applications.

The company is focused on providing networking segments in mobile asset monitoring and management solutions, and is committed to become the industry's leading mobile asset management solution providers and operators. After years of development and accumulation, the company has developed a complete set of intelligent hardware and mobile asset management software cloud management platform, providing the market with software and hardware products and services, which is advanced, practical, and regard energy consumption and asset security management as the core value.

850MHz GPS Smart Lock , JT707A Shipping Container Padlock 10
850MHz GPS Smart Lock , JT707A Shipping Container Padlock 11

FAQ:


Q1. Why choose us?
A: We have worked with 50 customers from Fortune 500, which include Huawei, Carefour, Dia, DHL,SGS......etc,
in cooperating with those internataional enterprises and orgnizations, we can fully satisfy your needs in mobile
assets monitoring field.



Q2. What is your terms of delivery?
A: EXW, CNF Shenzhen or FOB Shenzhen.



Q3. How about your delivery time?
A: Generally, it will take 2-3 days after receiving your advance payment. The mass production delivery time depends on the items and the quantity of your order, maximum 10-20 days.



Q4. Can you produce according to the samples?
A: Yes, we can produce your samples or technical drawings. We can build the moulds and working samples.



Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.



Q6. Do you test all your goods before delivery?
A: Yes, we have 100% Aging testing and data online testing before delivery.



Q7: How do you make our business long-term and a good relationship?
A:1. We will keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
