Real Time Monitoring Valve Lock

Product Details:
Place of Origin: Guandong,China
Brand Name: OEM
Certification: CE,ISO9001:2015, ATEX, IEC EX
Model Number: JT802
Payment & Shipping Terms:
Minimum Order Quantity: 2 unit
Price: negotiate
Packaging Details: Carton OR wooden box
Delivery Time: 2-7 days
Payment Terms: T/T
Supply Ability: 10000 units per month

Detail Information

Product Name: Tank Truck Unload Valve Lock Weight: 2400g
Protection Grade: IP67 Waterproof Unlocking: Remote Command, Bluetooth, Physical Key
Function: Unload Valve Smart Lock Application: Different Tank Trucks Such As Chemical Tanker, Waste Tanker
Standard Battery: 4000 MAh, 2 Years Battery Life Brand: OEM
Warranty: 1 Year Dimension: 248.5*190.1*165mm
Compatible Valves: Civacon Valve, GME Valves, YOJE Valves
Highlight:

Real Time Monitoring Valve Lock

,

Truck Tank Valve Lock

,

Authorized Unlocking Valve Lock

Product Description

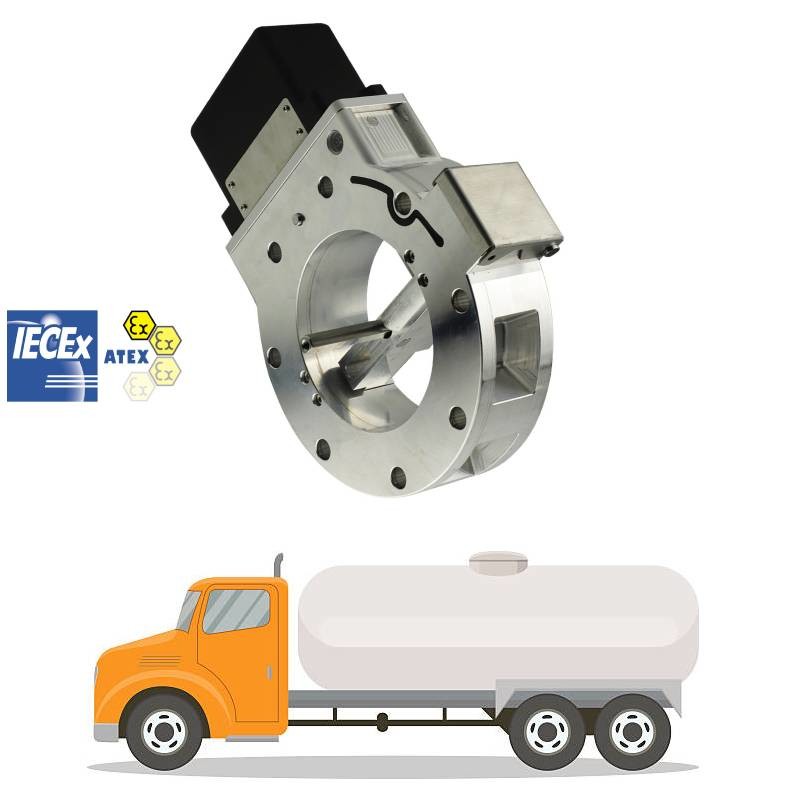

Tank Truck unload Valve lock Remote authorized unlocking Real Time Monitoring Protect Fuel
Real Time Monitoring Valve Lock 0

This unloading Valve lock JT802 worked with Master Lock JT701, is the one of few smart valve lock in the market recently, which passed strictly IEC EX certification, and can be used to remotely monitor and control the fuel unload.

The development progress takes 2+ years along with various change and modification to meet the ATEX and IEC EX certification request.

Smart unload Valve lock JT802 is target to be compatible with various tank truck valve security lock, to intelligently control the outlet valve lock open and close. The unlock method can be Bluetooth nearby, can be remotely via Lora master, can be unique physical key.

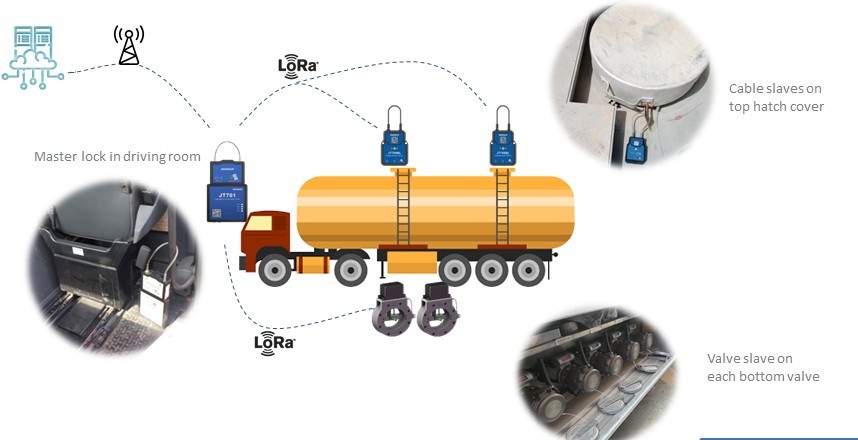

It can also work together with master lock for multi-valves controlling together.

Now it has been used on oil company to help them monitor the transportation oil trucks. For example, it has compatible with Civacon valves, GME valves, YOJE valves and other different API valves.  To check whether it is compatible with yours, please send us photos and valve model to confirm in specific.

Real Time Monitoring Valve Lock 1Real Time Monitoring Valve Lock 2

Real Time Monitoring Valve Lock 3

Real Time Monitoring Valve Lock 4

Catch me to get some specific case study!


Unload valve lock Features:

  • Live monitoring truck location and valve open/close

  • Available to use in dangerous enviorment such as oil station, chemical transportation

  • Long battery life, 2 years if unlock 10 times a day.

  • Smart management for digital system with high efficiency

Type

Function

Basic Function

Transmission mode

Lora, remotely

Lock status detecting

Real time

Unlock option

Remote/Bluetooth

Data info

Lock status; unlock case; left power

Data storage

1000 pcs

Alarms

Low power
Valve remove
Top Cover open
Manual lock cover open
Offline alarm (valid with JT701D master)

Battery management

Low power working mode
Sleep mode
Low power deep sleep mode

Battery life

2 years
[suppose 10 unlock per day]

Basic Function

Wake-up resource

Bluetooth unlock
Manual lock cover open
RTC
Valve remove
Manual wake-up

Parameters

Dimension

248.5*190.1*165mm

Weight

2400g

Working and storage temp

-20℃~60℃

Relatively humidity

95%

Battery

4000mAh

Protection

IP67 protection grade

Average working current

16mA

Standby working current

50uA

Certification

IECEx: Ex ib IIB T4 Gb
ATEx: II 2 G Ex ib IIB T4 Gb


Real Time Monitoring Valve Lock 5



Valve lock JT802 FAQ:
1) Do you have your own factory?
A: Yes, our factory and working building locating in Guangdong, China with 15 history.
2) Do you provide customized hardware and software?
A: Yes, we can provide not just customized hardware, but also software funcationalities.
