Jointech JT705A High Security GPS GSM Cargo Tracking Electronic Lock with ETA Management

Contact Now

Jointech JT705A High Security GPS GSM Cargo Tracking Electronic Lock with ETA Management

Minimum Order Quantity :	1	Price :	USD458 ~ 508 per unit
Packaging Details :	Carton: 49cm x 39cm x 31cm	Delivery Time :	3 ~ 45 days
Payment Terms :	T/T, Paypal, Alipay, etc.	Supply Ability :	10,000 per month

Place of Origin:	China	Brand Name:	Jointech
Certification:	CE	Model Number:	JT705A

Detail Information
Application:	Cargo Transit Safety Protection, ETA Management	Feature:	Live Tracking, Remote Authorized Unlocking, Difficult To Tamper
Battery:	26500mAh Rechargeable Li-ion Battery	Unlock:	RFID, Bluetooth, Web, Mobile APP
Product Name::	Security GPS E-lock	Weight:	4.2kg
Highlight:	Cargo Tracking Electronic Lock , GPS GSM Electronic Lock , High Security Electronic Lock

Product Description

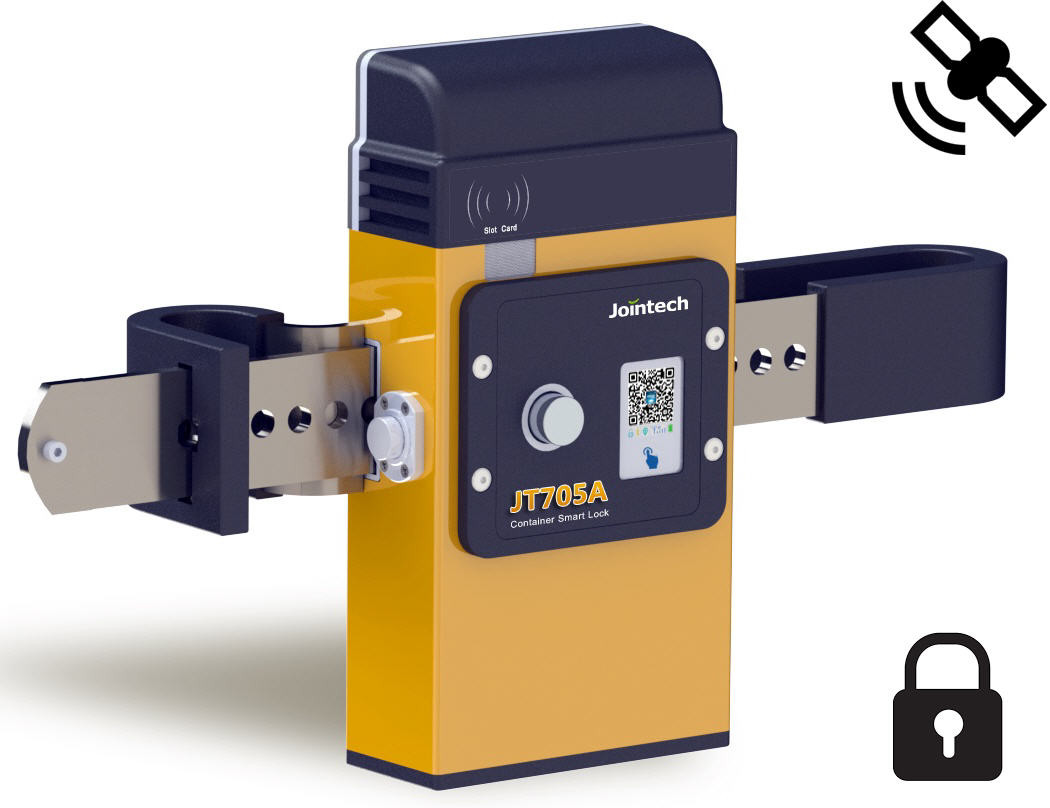

Jointech JT705A High Security GPS GSM Cargo Tracking Electronic Lock

Jointech JT705A High Security GPS GSM Cargo Tracking Electronic Lock with ETA Management

JT705A is the padlock designed for high value cargo transportation security, real time tracking, strong aluminium case/carbon steel latch with GPS tracking function, it can be unlocked by bluetooth or authorized RFID on site, and remote SMS/software/Mobile APP unlock supported. Voice broadcast for each operation, dual sim for cross border application, etc.

Jointech JT705A High Security GPS GSM Cargo Tracking Electronic Lock with ETA Management

Main Features:

☺ Standalone lock with Live GPS tracking;

☺ Strong aluminium case Carbon steel latch

☺ Remote unlock by mobile APP,SMS, Software;

☺ On site unlock by authorized RFID;Bluetooth APP

☺ Door locking status monitoring;

☺ Real time tampering alert;

☺ LED screen with dynamic Qr code; Battery, signal, lock status

☺ Voice broadcast for operation;

☺ IP67 waterproof grade;

☺ Easy to install;

☺ Rechargeable 26,500mAh battery 20 days life at 1-minute report;

☺ Support wireless temperature sensor for reefer

Main Specifications:


Physical	Dimensions	255mm x 135mm x 53mm
Specification	Weight	4.2kg (with standard accesorries)
Material	Shell	Aluminum alloy + Polycarbonate
	Lock Latch	Polycarbonate 486mm
Environmental	Operational Temperature	-20°C -- +70°C
Condition	Storage temperature	-40°C -- +80°C
	Operational Humidity	5 ~ 99%
	Low temperature battery available
Cellular	2G Module	GSM/EDGE 850/900/1800/1900Mhz
Communication	4G full band	4G LTE frequency band:
	Antenna type	B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19
	Data Channels	SMS&TCP/IP
Location	Type	GPS
	TTFF	2 sec (hot start)
		Velocity: 02m/s (50%)
	Antenna type	Built-in (concealed)
CPU	Static RAM	48KB
	Flash Memory	256KB
Battery	Type&capacity	Lithium 26500mAh, rechargeble)
Supply	Power input	DC 5V 2A
Average Power	Sleep/Idle	2G: 1.91mA / 4G: 2.17mA
consumption	GPS & GPRS	2G: 30.3mA / 4G: 48.7mA
RFID	Radio Frequency	125K
Sensor	Motion detection	6 axis accelerometer
Access Port	Type	USB / serial port
Memory	Data logs	20,000 logs
Bluetooth	Bluetooth 5.0	communication distance: 2-10m
