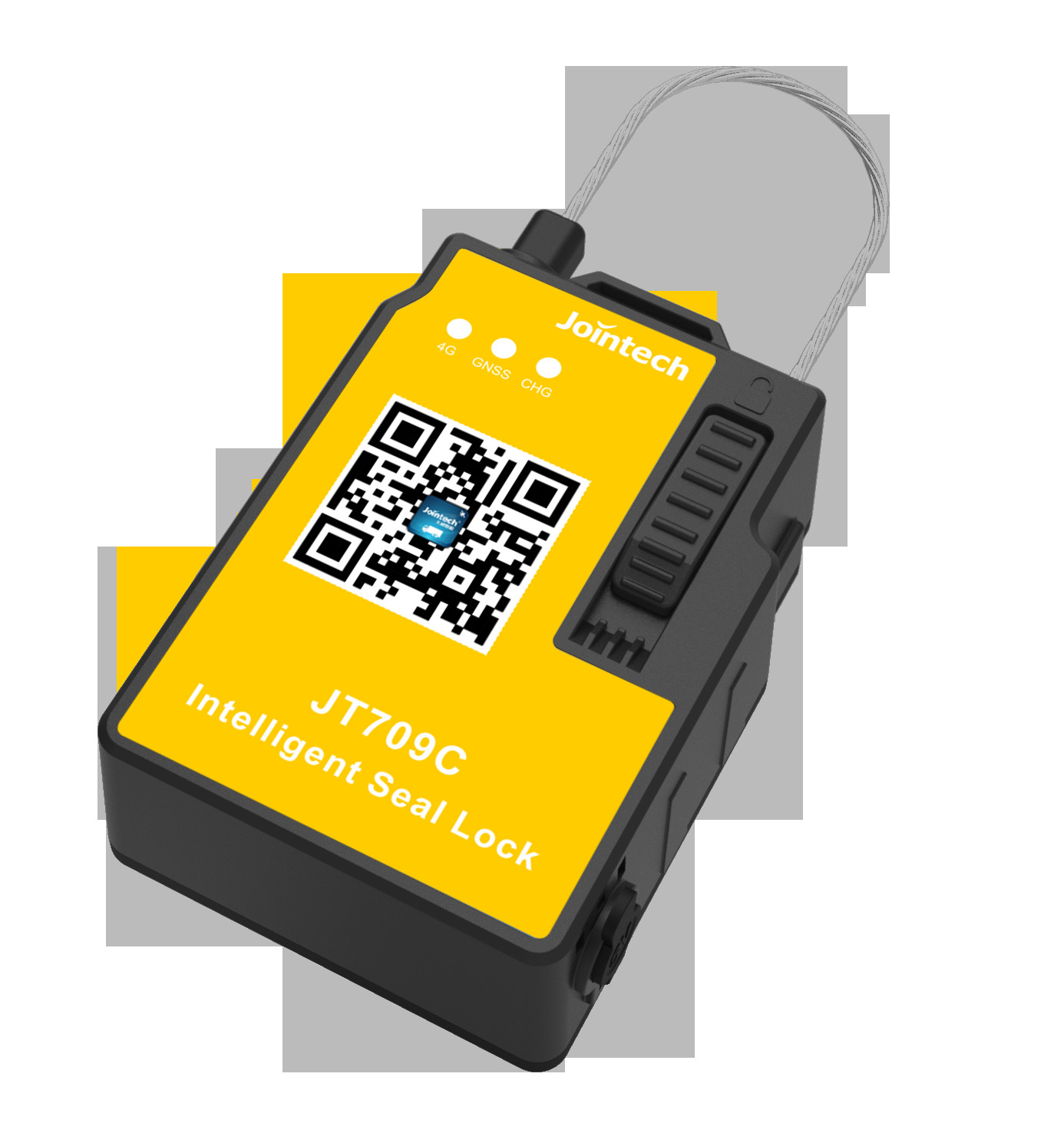

Jointech JT709C Electronic Lock Container Cargo Logistic Security Asset Tracking GPS Lock

JT709C Container Cargo Logistic Security Asset Tracking GPS Lock is a seal developed based on the existing product functions of JT701 smart electronic lock. Support remotely change of product configuration parameters, with rechargeable lithium battery, can be used repeatedly.

JT709C provides high-precision asset tracking information, supports remote online, on-site BlE offline unlocking, and supports real-time monitoring and monitoring on different platforms. Real-time tracking information such as historical track playback and seal status provide customers with lower cost, safer, more efficient, and more intelligent mobile asset location management solutions.



 Container Cargo Logistic Security Asset Tracking GPS Lock Features
1. Ble unsealing
2.APP authorization unlocking
3.More than 50,000 unlock times
4.Rechargeable 2600mAh battery
5.More than 1000 unlock records
6.Protection class IP67



Item	Description
Product size	88 *62*30(mm)
Lock weight	200g
Material	PA66+GF plastic
Seal cable diameter	seal cable diameter 1.8mm
Material of seal cable	304 stainless
Pulling force	＞60kg
Data communication	Default 4G CAT1 uploading, optional 2G GPRS network.
Communication mode	support TCP, SMS(message)
SIM card	Micro-SIM card
Wireless communication by Bluetooth	Support Bluetooth 4.2 and upper, the valid distance >10 (in theory)
Locating	Beidou+ GPS, LBS locating.
Vibration sensor	Inbuilt 3G axis G sensor
Working current	Working current average<40mA (data uploaded interval 60s)
Current in standby	In RTC mode, the average current: < 80uA
Battery	Rechargeable lithium battery 3.7V/2600mAh
Protection grade Working temperature Storage temperature	IP67	Protection grade
	-10℃--60℃	Working temperature
	-40℃--60℃	Storage temperature
Relative humidity	5%—95%





Container Cargo Logistic Security Asset Tracking GPS Lock

Container Cargo Logistic Security Asset Tracking GPS Lock Tracking Platform

Container Cargo Logistic Security Asset Tracking GPS Lock Application Scenario
