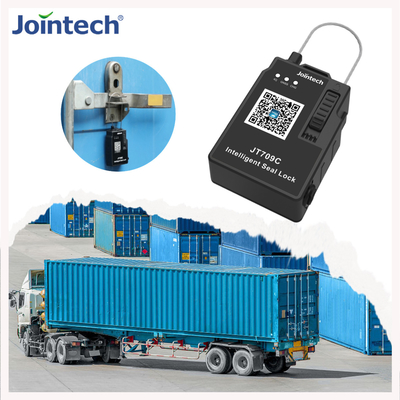

4G Bluetooth Electronic Seal Tracker Smart GPS Tracking Jointech JT709C

JT709C-intelligent electronic padlock is an electronic lock product developed based on the Jointech existed hardware model JT707A/JT709A series. It is a integration of business needs from customers. Device is with the features convenient use, low power consumption, long standby time, and the lock rope can be replaced / reused. It can be unlocked by Bluetooth, short message, supervision platform/APP, scan code, etc.



Features:
1. Bluetooth unsealing
2.APP authorization unlocking
3.More than 50,000 unlock times
4.Rechargeable 2600mAh battery
5.More than 1000 unlock records
6.Protection class IP67



Specification:



Item	Description
Product size	88 *62*30(mm)
Lock weight	200g
Material	PA66+GF plastic
Seal cable diameter	seal cable diameter 1.8mm
Material of seal cable	304 stainless
Pulling force	＞60kg
Data communication	Default 4G CAT1 uploading, optional 2G GPRS network.
Communication mode	support TCP, SMS(message)
SIM card	Micro-SIM card
Wireless communication by Bluetooth	Support Bluetooth 4.2 and upper, the valid distance >10 (in theory)
Locating	Beidou+ GPS, LBS locating.
Vibration sensor	Inbuilt 3G axis G sensor
Working current	Working current average<40mA (data uploaded interval 60s)
Current in standby	In RTC mode, the average current: < 80uA
Battery	Rechargeable lithium battery 3.7V/2600mAh
Protection grade Working temperature Storage temperature	IP67	Protection grade
	-10℃--60℃	Working temperature
	-40℃--60℃	Storage temperature
Relative humidity	5%—95%



Working Hours:









Hardware Version	Report interval/working mode	Working time
JT709C 4G	60sec/Tracking mode	Around 7 days
JT709C 4G	10min/Standby mode	Around 16 days
JT709C 4G	60min/Standby mode	Around 35 days
The working hours is based on the indoor test data at room temperature, without opening the SMS wake-up function, for reference only. In actual use, there will be differences due to differences in ambient temperature, satellite positioning signal and working mode.
